Monitor Audio W1M-E 5" In-Wall Speaker

Sold asSingle

Impedance8Ω

Amp power25–100W

WarrantyLifetime

GrilleIncluded

Monitor Audio W1M-E 5" In-Wall Speaker

£299 £249.17 ex VAT

Request a quote

Monitor Audio Creator Series is sold by quotation. Choose your models and quantities, and we'll email you a quote with a secure link to pay online, normally within one working day.

Monitor Audio W1M-E 5" In-Wall SpeakerW1M-E £299

Add other Creator Series models & fire hoods

In-ceiling speakers

C1L 9" In-Ceiling Speaker £349

C1M 7" In-Ceiling Speaker £299

C1S 5" In-Ceiling Speaker £249

C2L 9" In-Ceiling Speaker £449

C2L-CP 9" In-Ceiling Speaker £499

C2L-T2X 9" In-Ceiling Speaker £499

C2M 7" In-Ceiling Speaker £399

C2M-CP 7" In-Ceiling Speaker £449

C2M-T2X 7" In-Ceiling Speaker £449

C2S 5" In-Ceiling Speaker £349

C3L 9" In-Ceiling Speaker £749

C3L-CP 9" Three-Way In-Ceiling Speaker £850

C3M 7" 3-Way In-Ceiling Speaker £649

In-wall speakers

W1M In-Wall Speaker £399

W2M 3-Way In-Wall Speaker £599

W2M-CP 5" Three-Way In-Wall Speaker £799

W3M In-Wall LCR Speaker £999

Speaker packages

Sonos Amp + 2x C2M Ceiling Speaker Package £1,359

Sonos Amp + 4x C1S Ceiling Speaker Package £1,549

WiiM Amp + 2x C2M Ceiling Speaker Package £1,099

WiiM Amp + 4x C1S Ceiling Speaker Package £1,279

Monitor Audio fire hoods

WL-FH Fire Hood for Large In-Wall Speakers £150

WM-FH Fire Hood for Medium In-Wall Speakers £120

CML-FH Fire Hood for Medium & Large In-Ceiling Speakers £75

CS-FH Fire Hood for Small In-Ceiling Speakers £65

Estimated total (inc VAT, before delivery and any multi-buy saving)£299

Name * Email *

PhoneDelivery postcode

Anything else? (room sizes, timescale, trade account)

Prefer to talk? Call 01284 634048 or email sales@ceiling-speakers.co.

You'll need an amplifier

These are passive speakers, so they need an amplifier to power them (8Ω, 25–100W recommended). Either of these will drive a pair and stream music from your phone.

Sonos AmpSonos app, AirPlay 2, TV connection £639 Add

WiiM AmpSpotify, Tidal, AirPlay 2, Chromecast £359 Add

Need a fire hood?

If the ceiling has a bedroom or other living space above it, or is part of an escape route, building regulations require each speaker to have a fire hood. Hoods also cut sound leaking into the room above.

Monitor Audio WM-FH Fire Hood for Medium In-Wall Speakers

Monitor Audio WM-FH Fire HoodFits this speaker £120 Add

Need speaker cable?

Allow about 10m per speaker for a typical run back to the amplifier. Webro 16/2 LSZH (low smoke, zero halogen) is the right cable for runs in ceilings and walls.

Webro 16/2 Speaker Cable2 Core 16AWG (1.31mm²) LSNH Violet

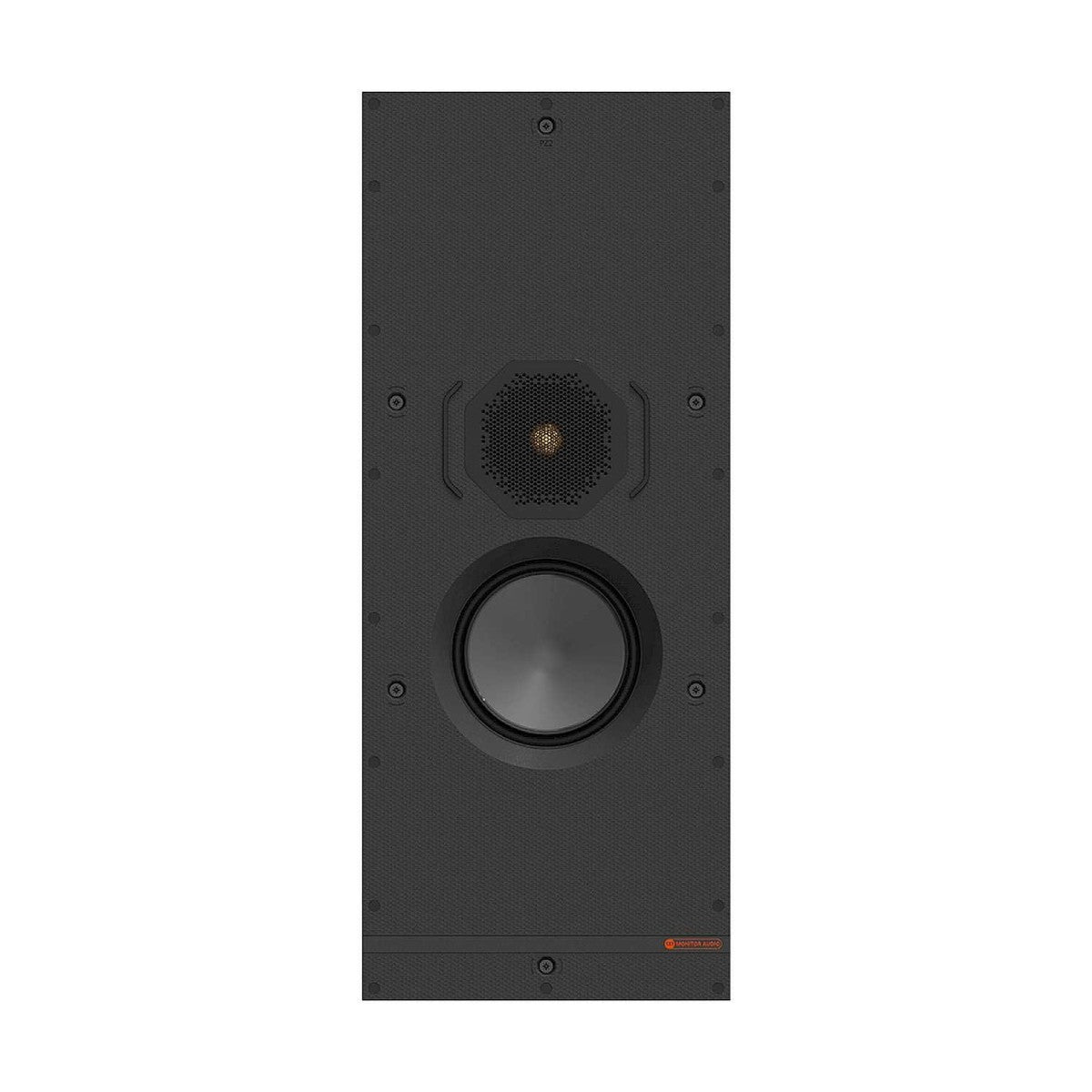

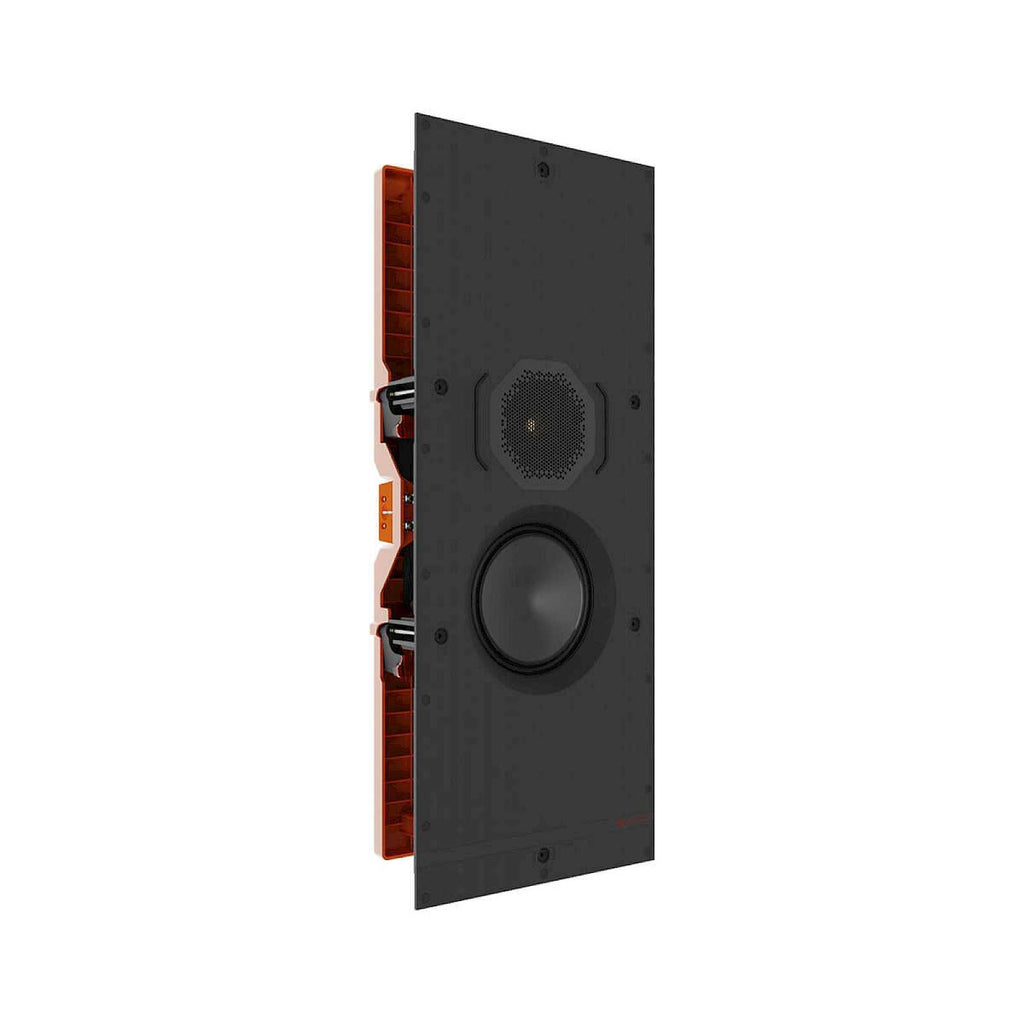

The Monitor Audio W1M-E is a versatile 5" in-wall speaker built for reliable, great-sounding background and foreground audio in living rooms, home cinemas, and multi-room installations. It's an ideal choice when you want hi-fi quality sound without visible boxes cluttering the room, whether as part of a surround setup or a simple stereo pair.

Why we like it

C-CAM mid-bass driver and tweeter combine for clear, natural reproduction across the frequency range
UD waveguide spreads treble more evenly, so off-axis listening positions still sound great

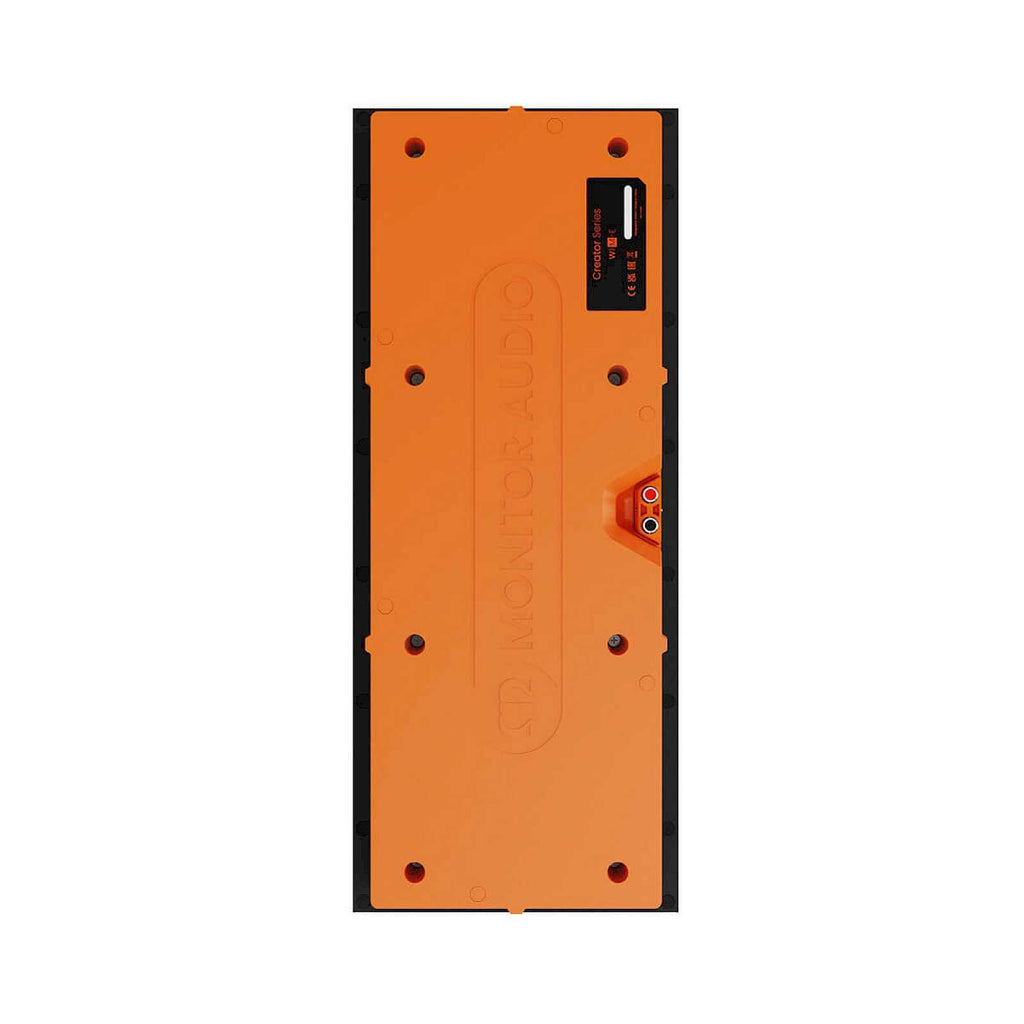

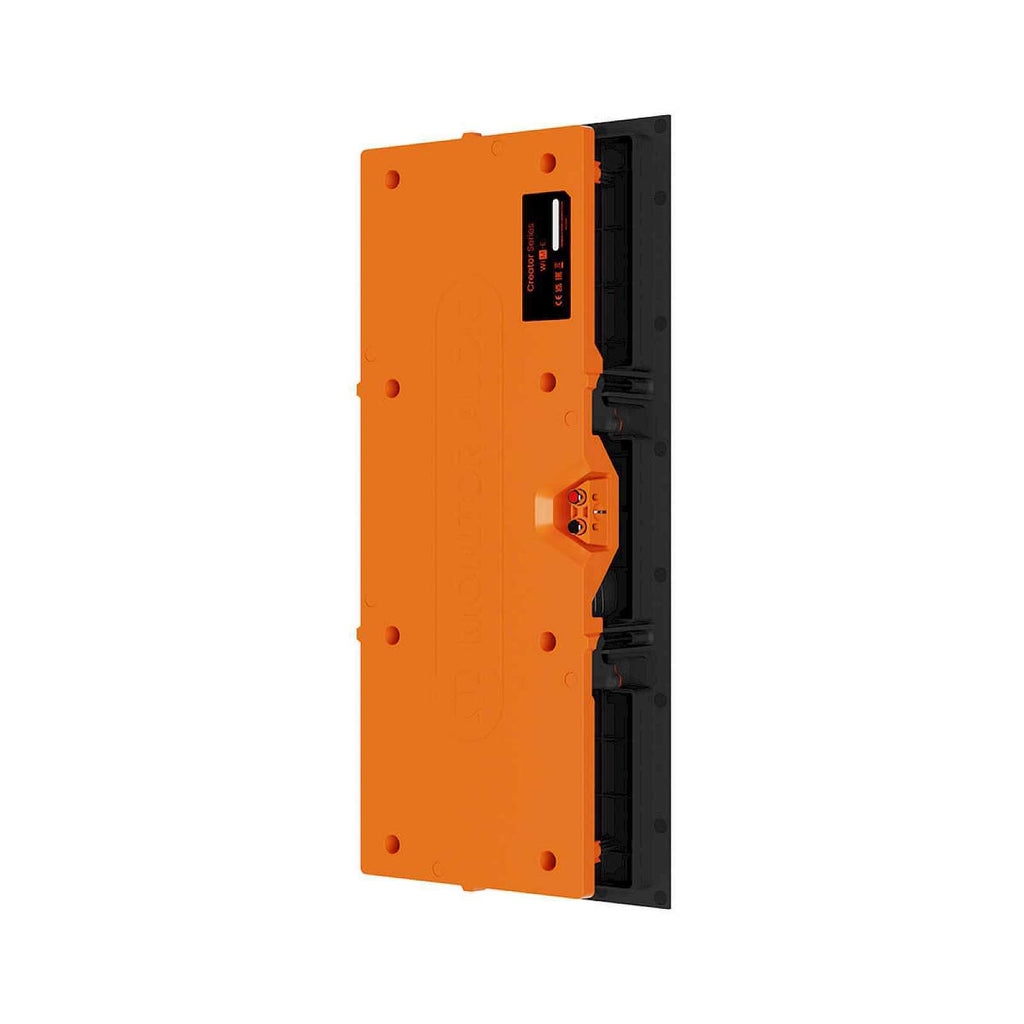

Quik-Link connector makes cable termination quick and fuss-free during install
Tri-Grip II fixing system holds the speaker firmly in place with no rattle
Slim design and magnetic grille keep the aesthetic discreet once fitted

Installation notes

The W1M-E requires a rectangular cut-out of 527 x 198mm and a mounting depth of 85mm, so check your wall cavity depth before cutting. A pre-construction bracket (WM-B) is available for new-build projects. Pair with an amplifier delivering 25-100W RMS into 8 ohms; a Sonos Amp or WiiM Amp both make excellent, easy-to-use partners for driving this speaker in a multi-room or home cinema system.

Specifications

System Format	2-Way
Frequency Response (-6dB)	40 Hz - 30 kHz
Nominal Impedance	8 ohm
Minimum Impedance	6.5 ohm @ 200 Hz
Sensitivity	84 dB (2.83Vrms @ 1m)
Continuous Power Handling	50W RMS
Recommended Amplifier Power	25-100W RMS into 8 ohm
Drive Units	1 x 5" C-CAM mid-bass, 1 x 1" C-CAM tweeter
Mounting Depth	85mm
Cut-out Dimensions	527 x 198mm
External Dimensions	560 x 231 x 90mm
Weight	2.6 kg
Cabinet Finish	Matte black and orange
Warranty	Lifetime

Questions we get asked

Does it come with a grille?

Yes. Every ceiling and in-wall speaker we sell comes with its grille in the box. Manufacturer photos often show the speaker with the grille removed so you can see the drivers, but the grille is always included.

Will it fit my wall?

You'll need at least 85mm of depth behind the wall surface. Standard plasterboard ceilings with joists are usually fine; check for pipes, cables and insulation before cutting. Not sure? Send us a photo or plan and we'll check it for you.

Do I need an amplifier?

Yes. These are passive speakers, so they need an amplifier or AV receiver to drive them. They're rated at 8Ω with 25–100W recommended amplifier power. For most rooms a Sonos Amp or WiiM Amp is ideal: each drives a pair and streams from your phone. You can also buy a package with the amp included and save 5%.

How many speakers do I need?

As a rule of thumb: a pair for most bedrooms, kitchens and living rooms up to about 20m², two pairs for large open-plan spaces, and a single stereo speaker (T2 / stereo models) for small rooms like en-suites. For home cinema, use 5 or 7 speakers plus a subwoofer. Our free design service will plan positions and sizes from your floorplan.

Can I return it?

Yes. Unused items can be returned within 30 days of delivery, and every product carries the full manufacturer warranty. Returns & warranty.
