4 Zone Sonos Multi-Room System with White Wall Controls & 8x Monitor Audio C165 Ceiling Speakers
4 Zone Sonos Multi-Room System with White Wall Controls & 8x Monitor Audio C165 Ceiling Speakers
Allow about 10m per speaker for a typical run back to the amplifier (8 speakers = 80m). Webro 16/2 LSZH (low smoke, zero halogen) is the right cable for runs in ceilings and walls.

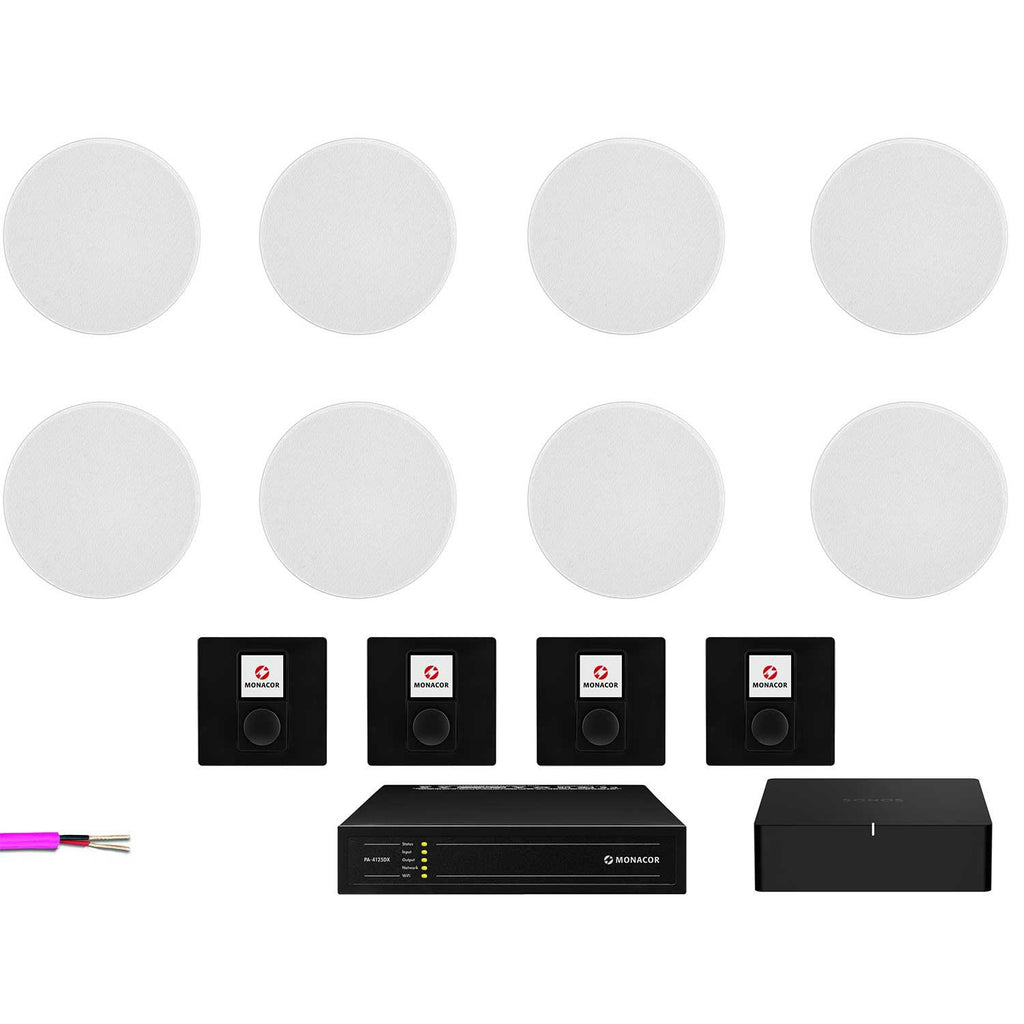

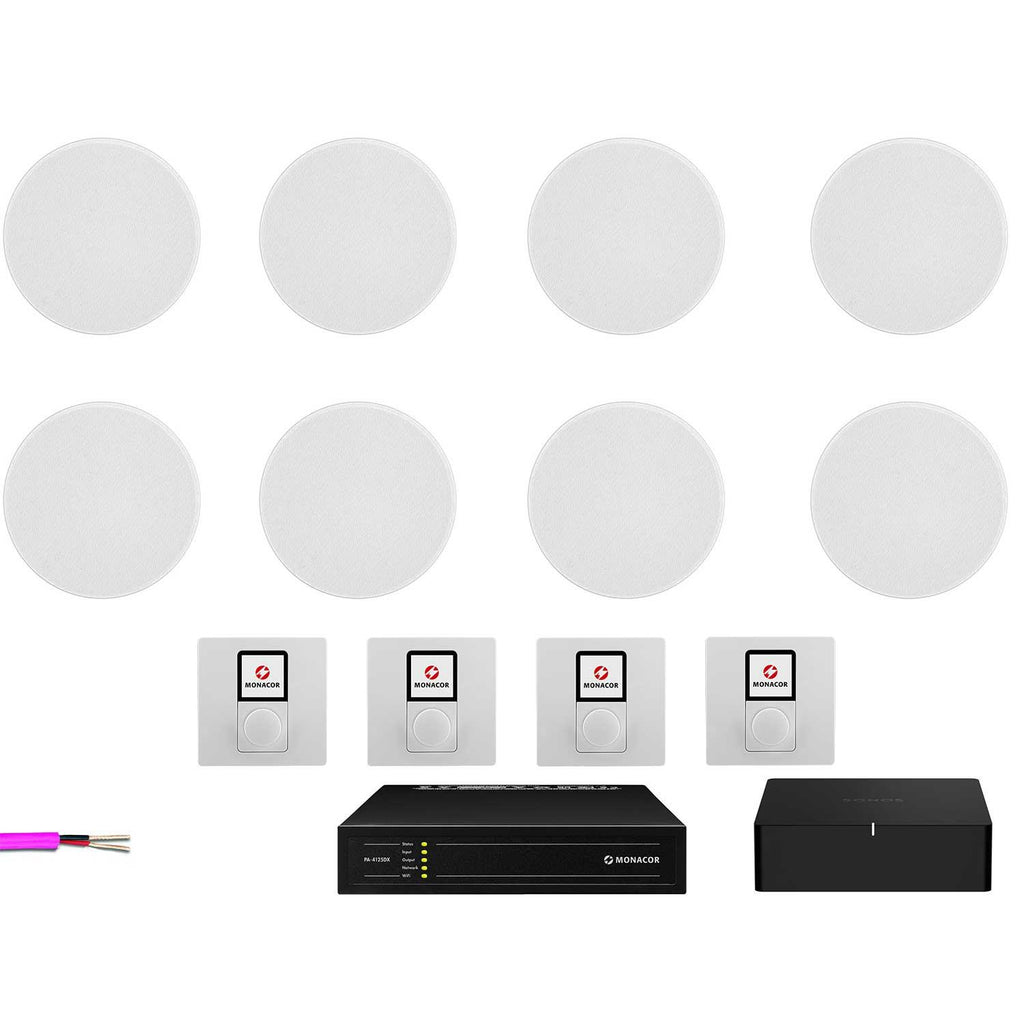

This complete 4-zone multi-room audio package is built for homes, offices, bars, restaurants and hospitality venues that need reliable, high-quality sound with simple local control. At its heart sits a Sonos Port for effortless streaming, paired with a Monacor PA-4125DX matrix amplifier and eight Monitor Audio C165 in-ceiling speakers, giving every zone its own dedicated 125W of power.
Why we like it
- True 4-zone independence lets each area play its own source and volume
- Monitor Audio C165 speakers deliver detailed, wide-dispersion sound from a discreet ceiling-mounted footprint
- PoE-powered WP-1 wall controllers mean no extra power supplies to install at each control point
- Sonos Port brings familiar app control and streaming service access to the whole system
- Supplied with 100m of LSZH pure copper cable, ready for a compliant professional install
Installation notes
This is a rack-based, professionally installed system rather than a plug-and-play kit. The Monacor PA-4125DX handles amplification and zone routing, while the four WP-1 wall controllers (supplied in white) are powered over the included PoE network switch, simplifying first-fix wiring. No cutout or mounting depth dimensions are specified for the Monitor Audio C165 speakers, so installers should check current Monitor Audio documentation for ceiling cutout and depth requirements before first fix.
Specifications
| Zones | 4 independent zones |

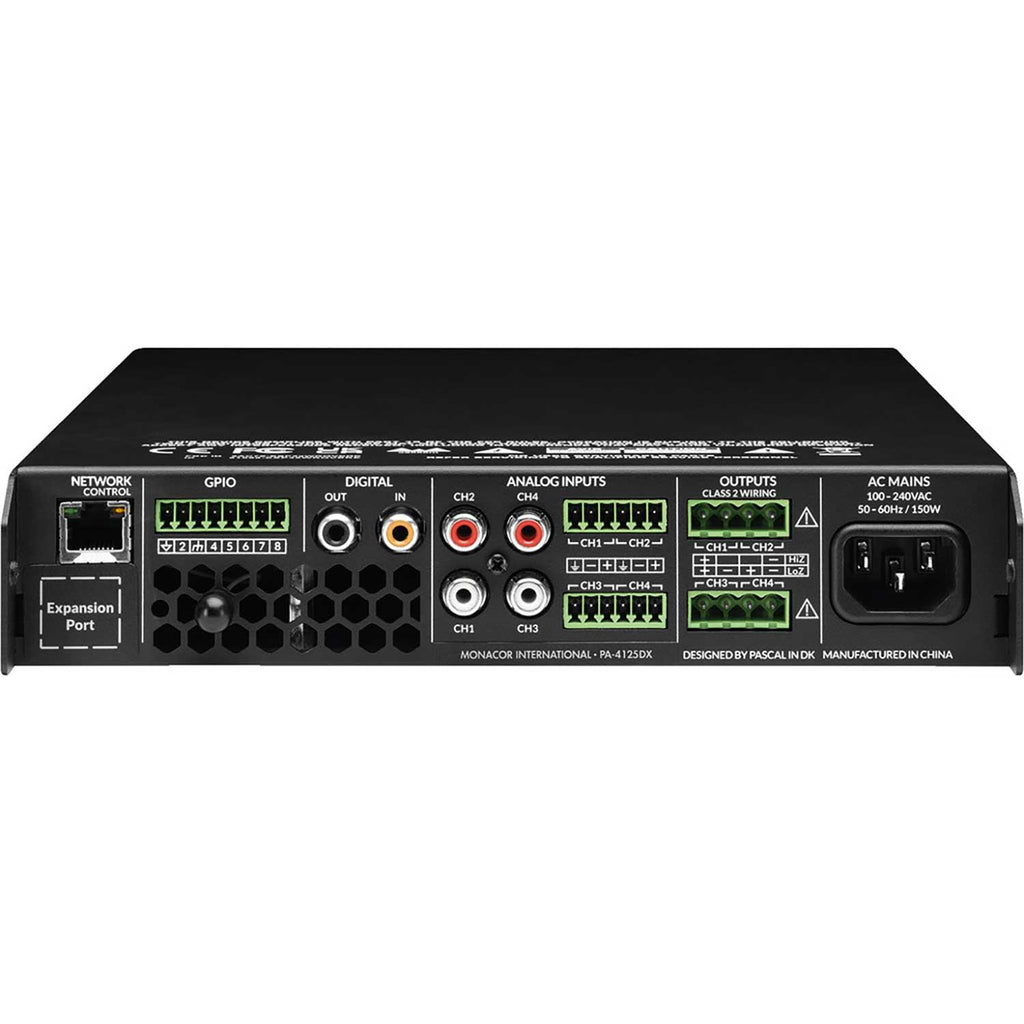

| Amplifier | Monacor PA-4125DX, 125W per zone |
| Streaming | Sonos Port network media player |
| Wall controllers | 4x Monacor WP-1, PoE-powered, white |
| Speakers | 8x Monitor Audio C165 in-ceiling speakers |
| Cable | 100m LSZH 1.5mm² pure copper installation cable |
| Power supply | PoE network switch included for wall controllers |
