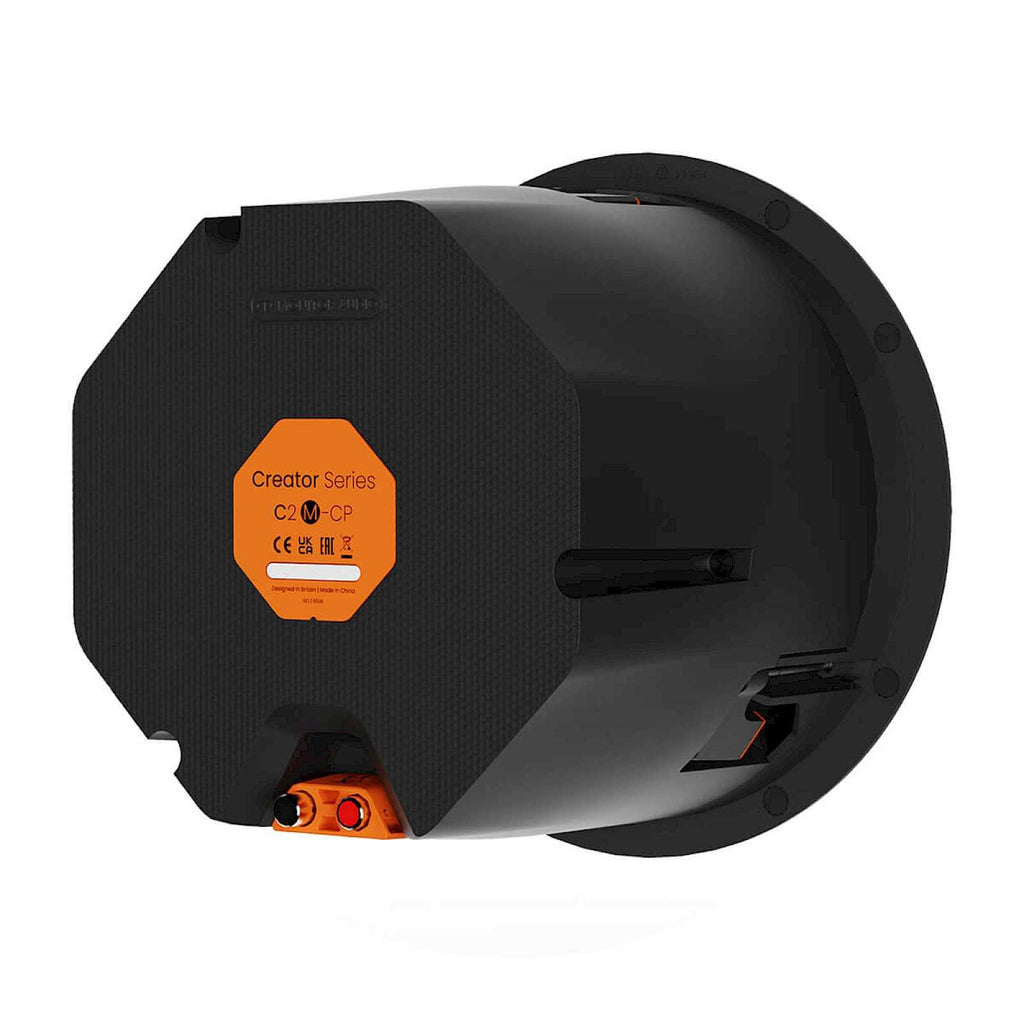

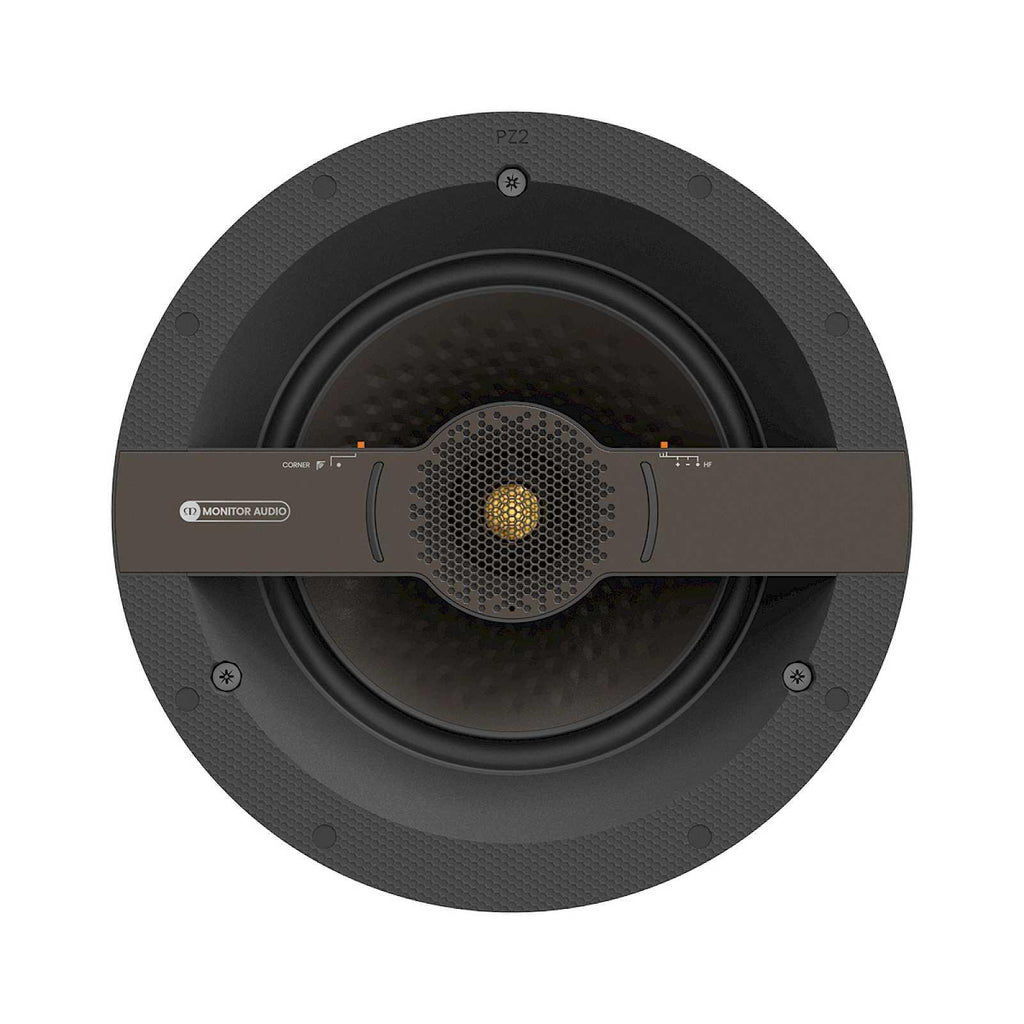

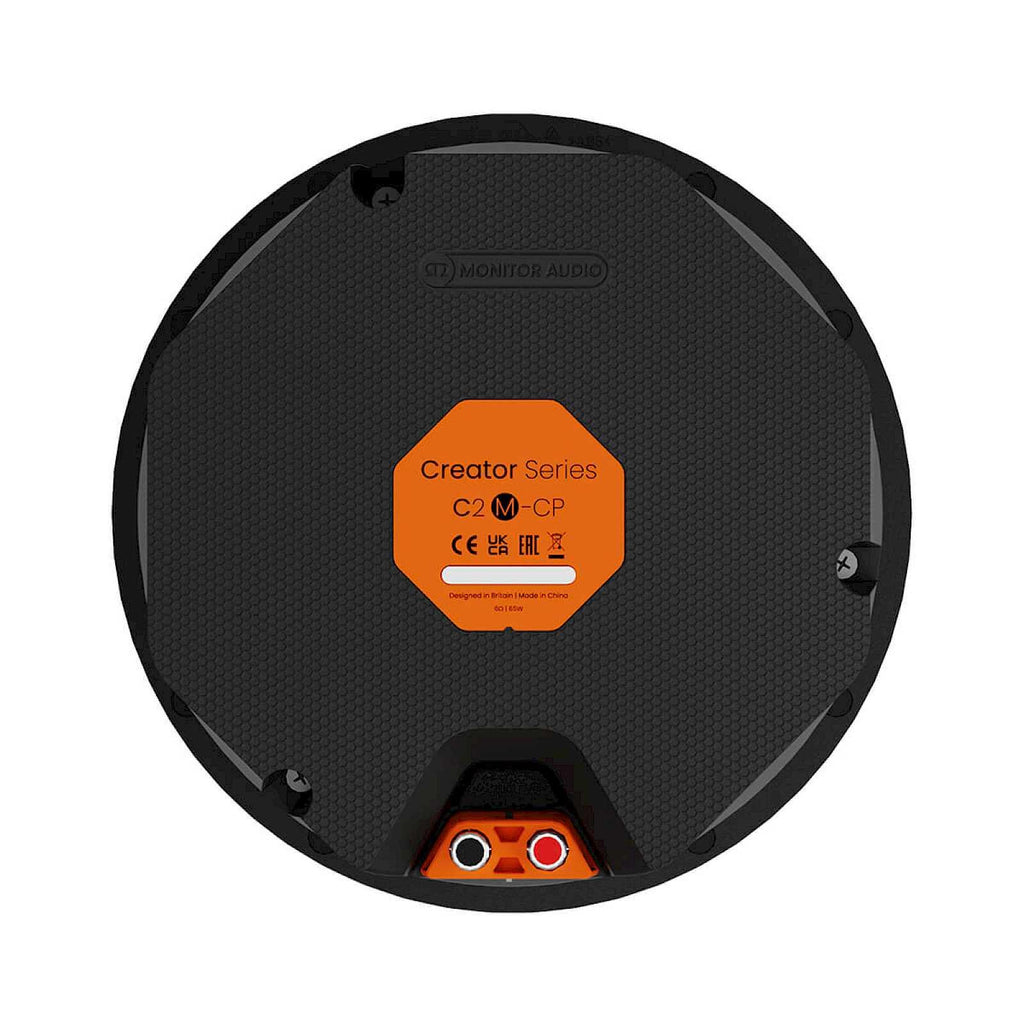

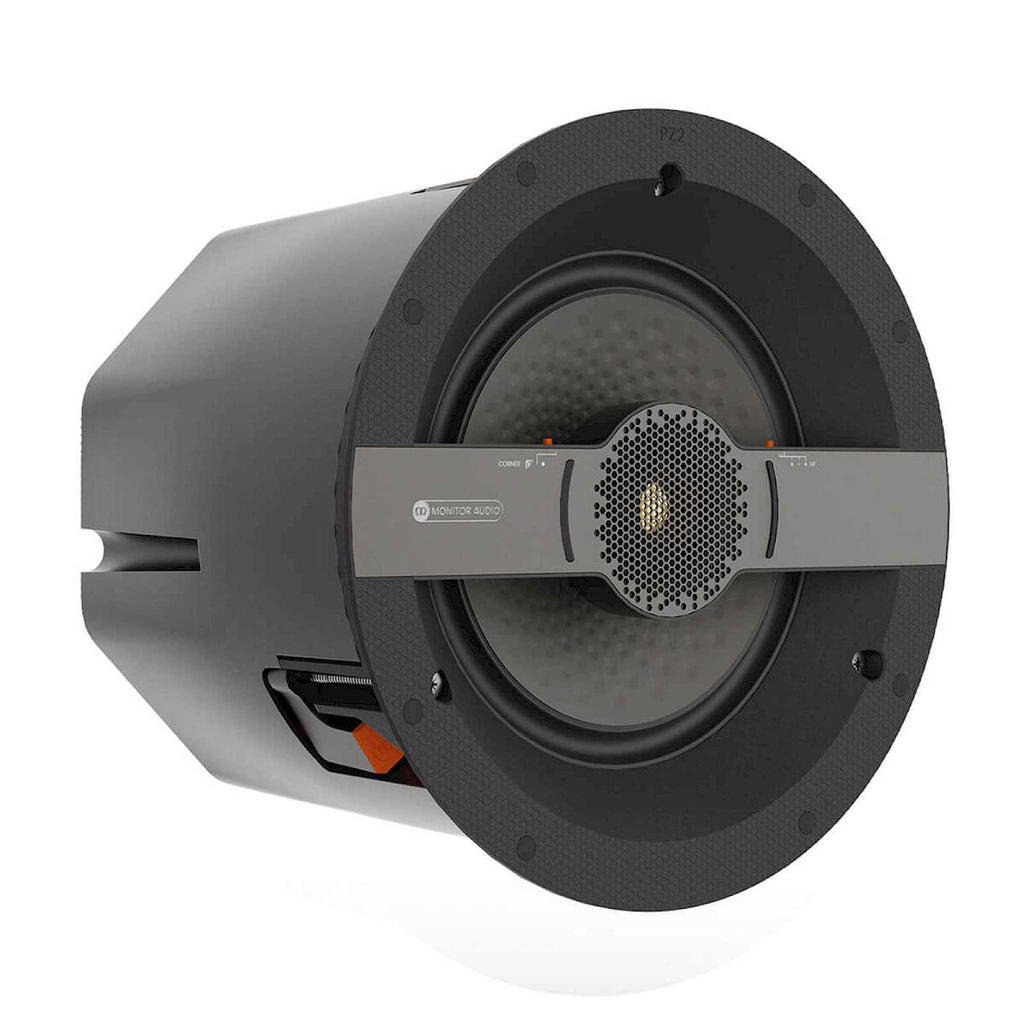

Monitor Audio C2M-CP 7" In-Ceiling Speaker
If the ceiling has a bedroom or other living space above it, or is part of an escape route, building regulations require each speaker to have a fire hood. Hoods also cut sound leaking into the room above.
Allow about 10m per speaker for a typical run back to the amplifier. Webro 16/2 LSZH (low smoke, zero halogen) is the right cable for runs in ceilings and walls.
Request a quote
Monitor Audio Creator Series is sold by quotation. Choose your models and quantities, and we'll email you a quote with a secure link to pay online, normally within one working day.
The Monitor Audio C2M-CP is a 7" two-way in-ceiling speaker built for installers and homeowners who need dependable, high-quality sound across multiple rooms. Its sealed Controlled Performance back box makes it especially well suited to commercial spaces such as offices, shops and restaurants, as well as residential multi-room audio, where consistent performance and reduced sound leakage between spaces matter.
Why we like it
- Sealed CP back box gives predictable in-room performance and cuts rear radiation by up to 30dB
- RST II mid-bass driver delivers accurate, low-distortion bass and midrange
- C-CAM tweeter with UD Waveguide II provides detailed, wide-dispersion treble
- Quik-Link connector and Tri-Grip II fixings speed up installation and keep it secure
- Onboard HF and corner switches allow fine-tuning to suit the room acoustics
Installation notes
The C2M-CP requires a 212mm round cutout and a mounting depth of 177.5mm, so check joist and ceiling void clearance before fitting. Its sealed enclosure means no additional back box is needed, simplifying installation in timber or plasterboard ceilings. Pair with a multi-room amplifier such as a Sonos Amp or WiiM Amp for streaming-based background music systems, or a traditional multi-channel amp for larger distributed audio installations.
Specifications
| System Format | 2-Way |
| Frequency Response (-6dB) | 70 Hz - 35 kHz |
| Nominal Impedance | 8 ohm |
| Minimum Impedance | 6.4 ohm @ 15 kHz |
| Sensitivity | 87 dB (2.83Vrms @ 1m) |
| Maximum Peak SPL | 116 dB |
| Continuous Power Handling | 65W RMS |
| Recommended Amplifier Power | 35-130W RMS into 8 ohm |
| Drive Units | 1 x 7" RST II mid-bass driver, 1 x 1" C-CAM tweeter |
| Crossover Frequency | 2.5 kHz |
| Bass Alignment | Sealed |
| Mounting Depth | 177.5mm |
| Cut-Out Hole Diameter | 212mm |
| External Dimensions | 242 x 242 x 181.5mm |
