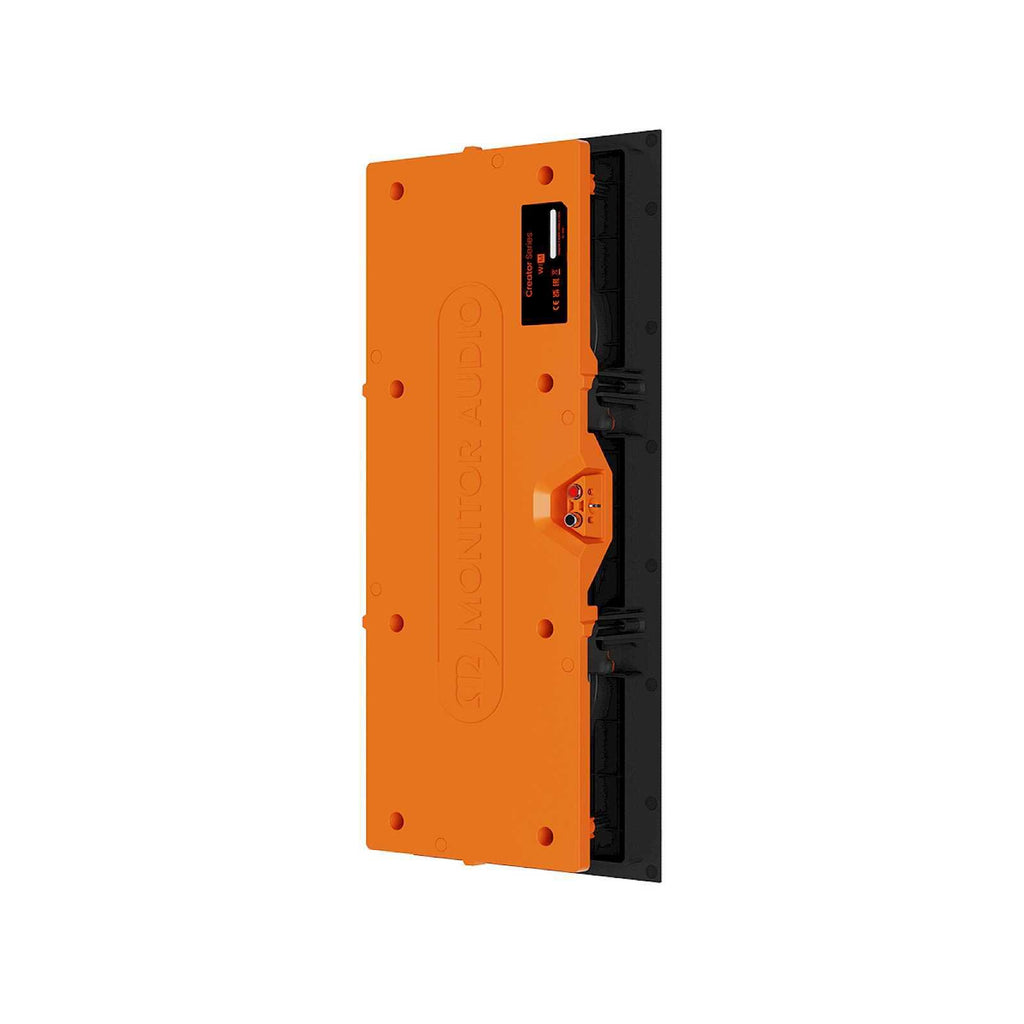

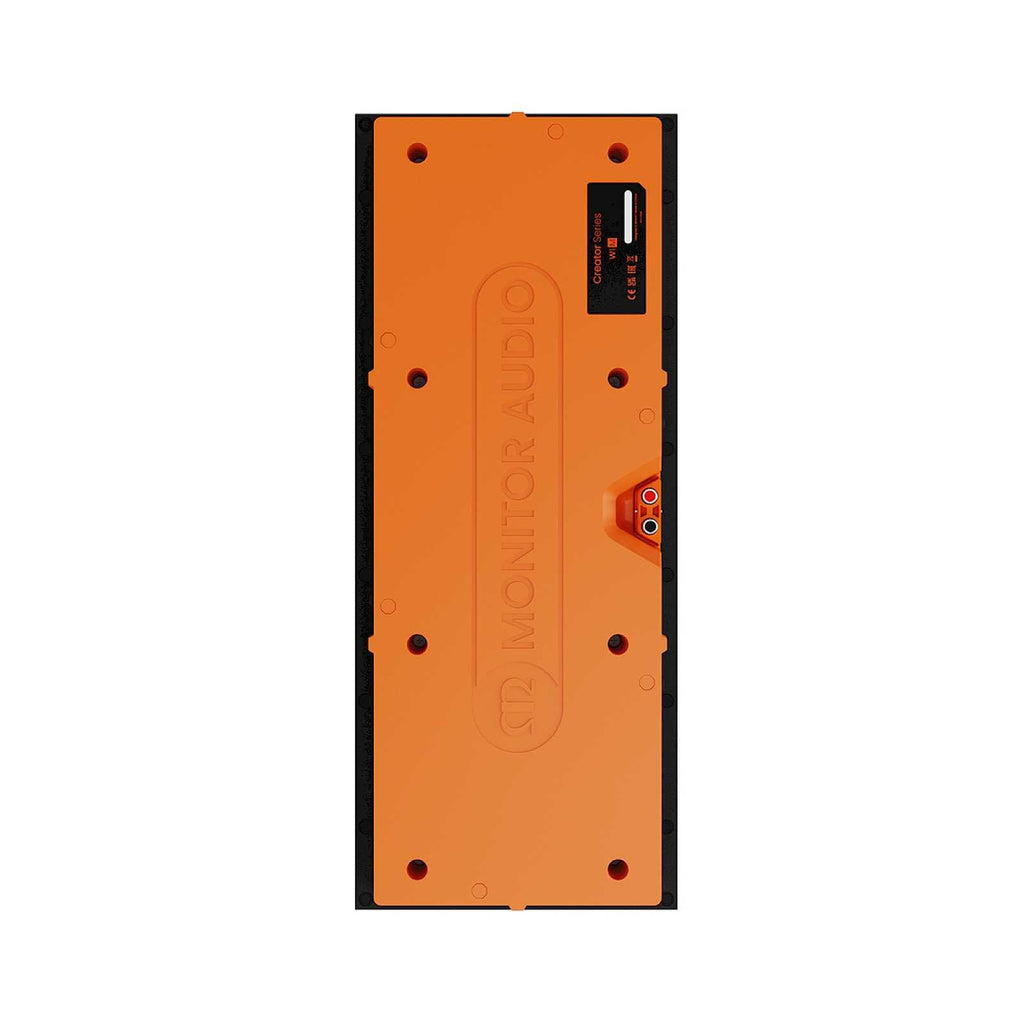

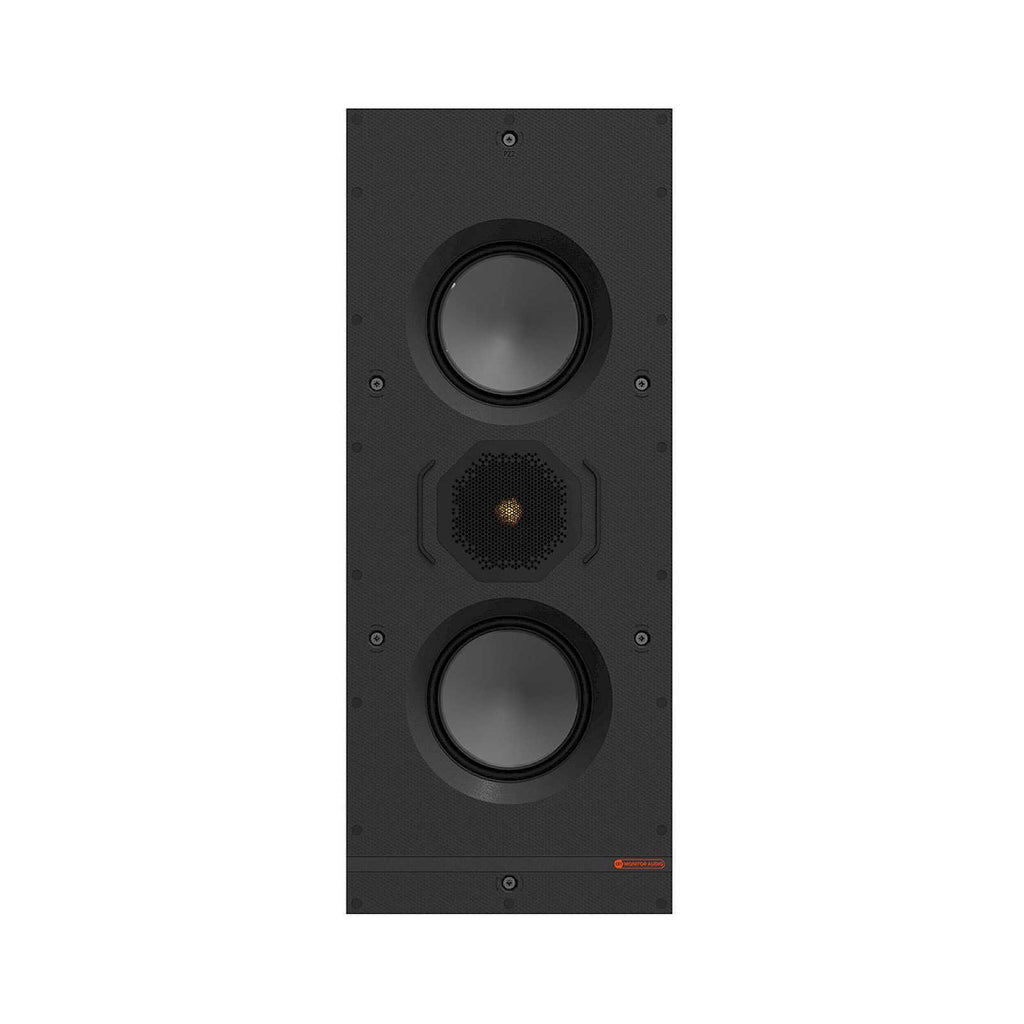

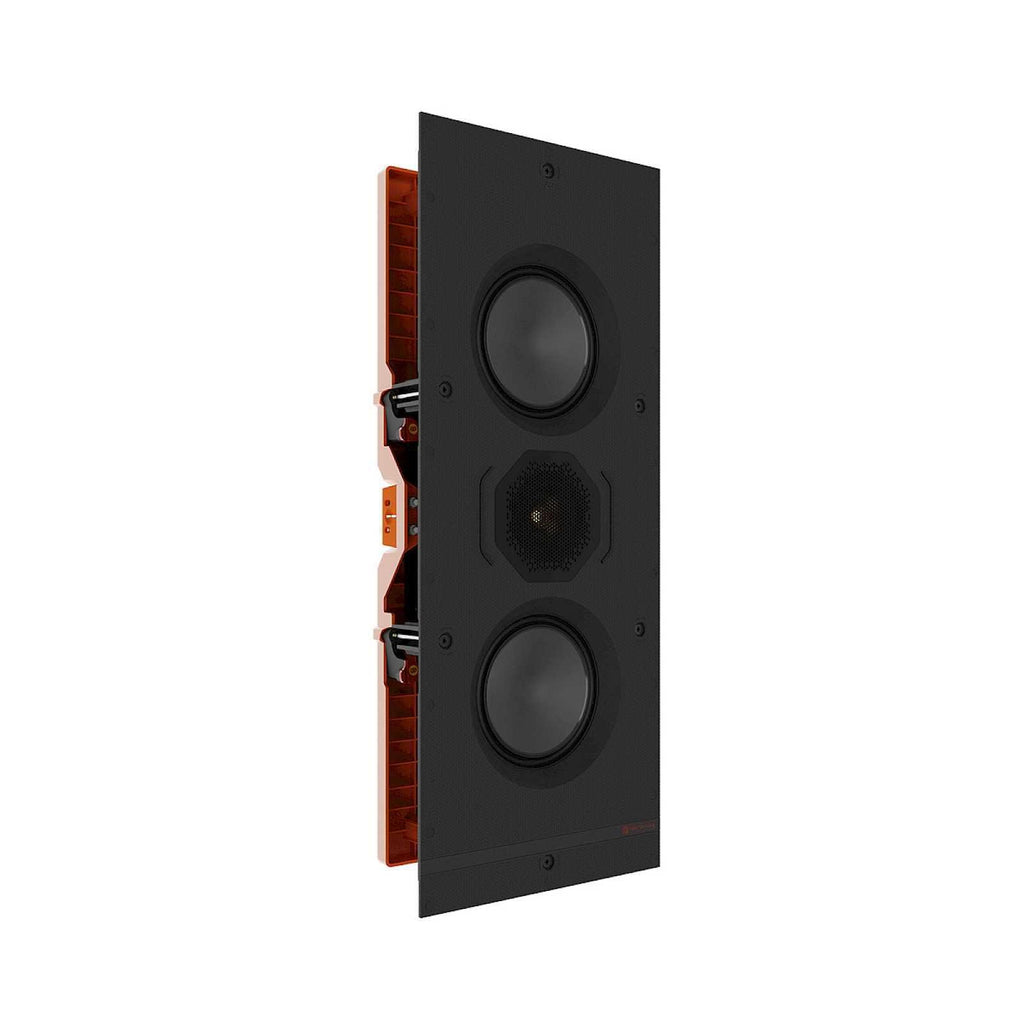

Monitor Audio W1M In-Wall Speaker
If the ceiling has a bedroom or other living space above it, or is part of an escape route, building regulations require each speaker to have a fire hood. Hoods also cut sound leaking into the room above.
Allow about 10m per speaker for a typical run back to the amplifier. Webro 16/2 LSZH (low smoke, zero halogen) is the right cable for runs in ceilings and walls.
Request a quote
Monitor Audio Creator Series is sold by quotation. Choose your models and quantities, and we'll email you a quote with a secure link to pay online, normally within one working day.
The Monitor Audio W1M is a versatile in-wall speaker designed for installers and homeowners who want dependable, high-quality sound without a visible footprint. Well suited to living rooms, home cinemas, and multi-room audio setups, it's equally at home in commercial installations where consistent performance matters.
Why we like it
- Dual 5" C-CAM mid-bass drivers deliver punchy, well-controlled low-end
- 1" C-CAM tweeter with UD waveguide gives crisp, wide-dispersion treble
- Quik-Link connector speeds up wiring with a tool-free fit
- Tri-Grip II fixing system holds the speaker securely in any standard wall
- Slim, paintable grille blends into the ceiling or wall once fitted
Installation notes
The W1M requires a mounting depth of 85mm and a rectangular cut-out of 527 x 198mm, so check joist and stud spacing before cutting. A pre-construction bracket is available for new-build or renovation projects. For amplification, pair with a Sonos Amp, WiiM Amp, or any AV receiver capable of delivering 30-110W RMS into 8 ohms.
Specifications
| System Format | 2-way |
| Frequency Response (-6dB) | 40Hz - 30kHz |
| Nominal Impedance | 6 ohms |
| Sensitivity | 87dB (2.83Vrms @ 1m) |
| Continuous Power Handling | 75W RMS |
| Recommended Amplifier Power | 30-110W RMS into 8 ohms |
| Drive Units | 2 x 5" C-CAM mid-bass, 1 x 1" C-CAM tweeter |
| Crossover Frequency | 2.75kHz |
| Mounting Depth | 85mm |
| Cut-out Dimensions | 527 x 198mm |
| External Dimensions | 560 x 231 x 90mm |
| Weight | 3.4kg |
