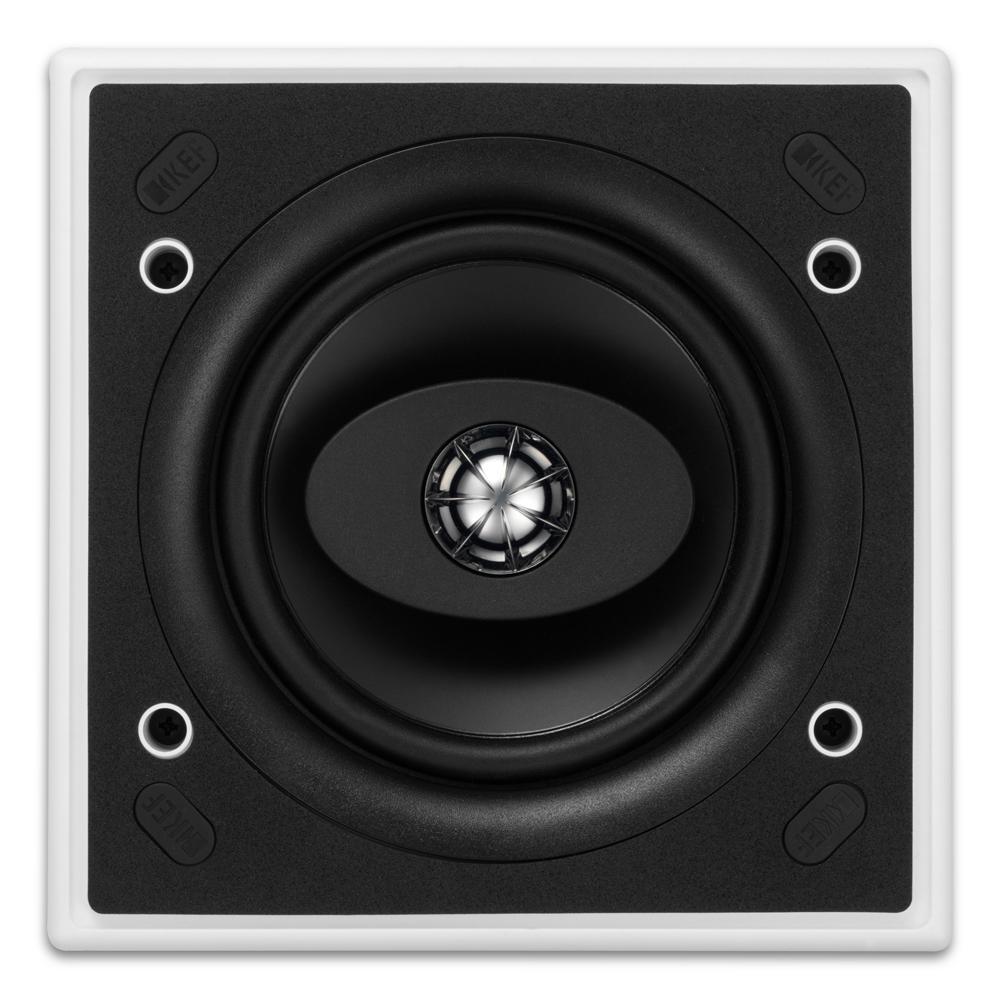

KEF Ci130CS 5.25" Square In-Ceiling Speaker
KEF Ci130CS 5.25" Square In-Ceiling Speaker
If the ceiling has a bedroom or other living space above it, or is part of an escape route, building regulations require each speaker to have a fire hood. Hoods also cut sound leaking into the room above.
Allow about 10m per speaker for a typical run back to the amplifier. Webro 16/2 LSZH (low smoke, zero halogen) is the right cable for runs in ceilings and walls.
The KEF Ci130CS is a 5.25" square in-ceiling speaker built for discreet, high-quality audio in homes and commercial spaces alike. Whether you're adding background music to a kitchen, bathroom, office or retail space, this speaker delivers KEF's signature clarity while disappearing into the ceiling.
Why we like it
- KEF's Tangerine Waveguide technology spreads high frequencies evenly across the room for consistent sound wherever you're stood
- Ultra-thin bezel and paintable magnetic grille create a near-invisible finish that blends with any ceiling colour
- Moisture-resistant construction means it's equally at home in a bathroom or kitchen as a living room
- Rigid ABS enclosure reduces unwanted resonance for a cleaner, more accurate sound
- Quick Mount fitting system makes for a straightforward, secure installation
Installation notes
The Ci130CS requires a square cut-out of 158mm x 158mm. The overall dimensions of the speaker are 184mm x 184mm, with a mounting depth of 77.1mm, so ensure adequate clearance above the ceiling before installation. As a passive speaker it needs an external amplifier; a compact multi-room amp such as a Sonos Amp or WiiM Amp pairs well for background music applications, delivering up to its rated 80W per channel at 8 Ohms. As a mono design, fit two units for true stereo coverage in a room.
Specifications
| Driver Size | 5.25" woofer, 0.75" tweeter |
| Power Handling | 80W |
| Impedance | 8 Ohms |
| Frequency Response | 45 Hz - 20 kHz |
| Sensitivity | 87 dB (2.83V/1m) |
| Overall Dimensions | 184mm x 184mm |
| Cut-Out Dimensions | 158mm x 158mm (square) |
| Mounting Depth | 77.1mm |
| Weight | 1.1 kg |
