SpeakerCraft AIM272 Mk3 7" Aimable In-Ceiling Speaker
SpeakerCraft AIM272 Mk3 7" Aimable In-Ceiling Speaker
If the ceiling has a bedroom or other living space above it, or is part of an escape route, building regulations require each speaker to have a fire hood. Hoods also cut sound leaking into the room above.
Allow about 10m per speaker for a typical run back to the amplifier. Webro 16/2 LSZH (low smoke, zero halogen) is the right cable for runs in ceilings and walls.

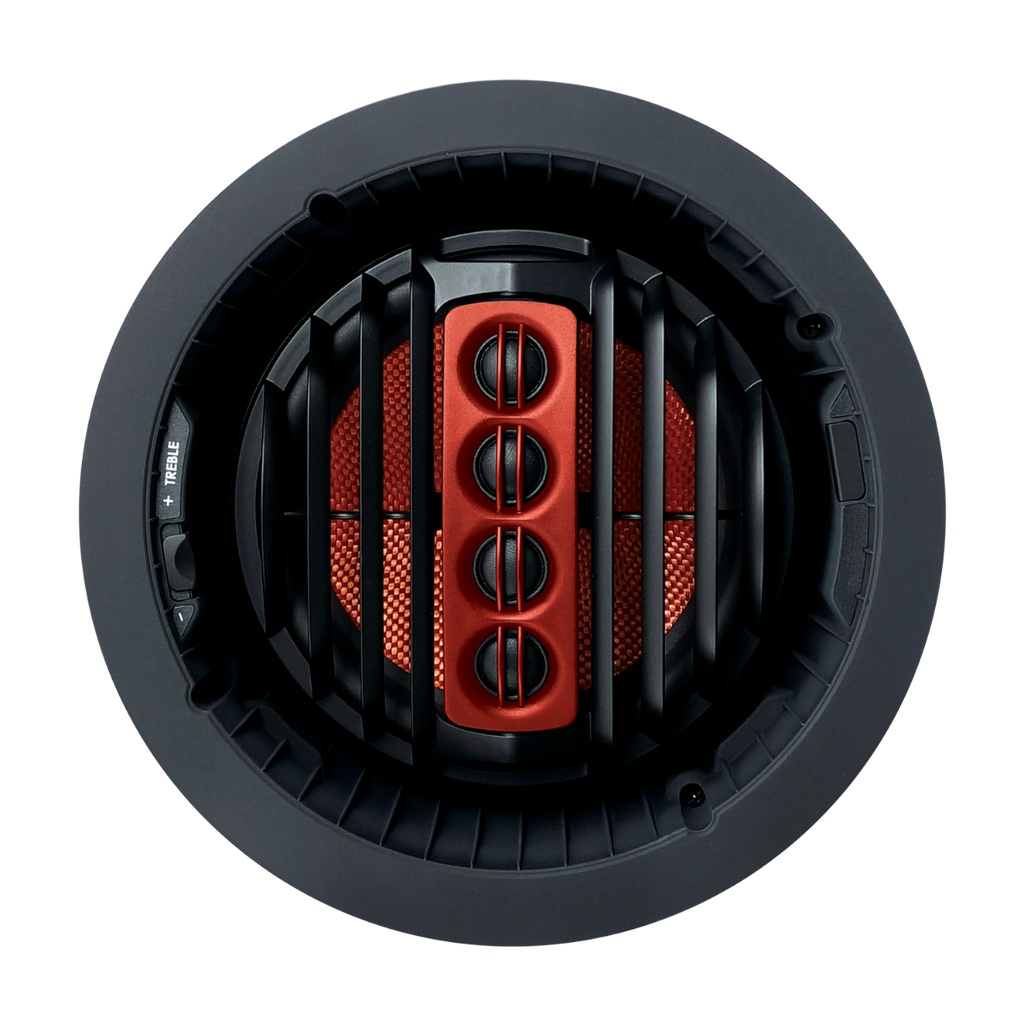

The SpeakerCraft AIM272 Mk3 is a 7" two-way in-ceiling speaker combining a pivoting glass fibre woofer with an aimable ARC tweeter array, designed for precise sound placement across home theatre and whole-home audio installations. Its flangeless, flush-fitting design and advanced dispersion engineering suit living rooms, media rooms and multi-room audio systems where discreet, directable sound is required.
Why we like it
- Proprietary ARC Tweeter Array with ±15° pivot and 359° rotation allows precise aiming of high-frequency sound towards the listening area
- 15° pivoting glass fibre woofer, for up to 30° of total adjustment, directs bass and midrange where it's needed
- Acoustic Isolation Technology decouples the speaker housing from the ceiling to eliminate structural resonance for a truer sound
- Updated WavePlane technology acts as an acoustic lens, improving high-frequency dispersion for a wider, cleaner soundstage
- Updated symmetrical and asymmetrical Linkwitz-Riley crossover design improves phase coherence and delivers smoother frequency response, suiting Dolby Atmos, Auro-3D and DTS:X platforms
Installation notes
The AIM272 Mk3 requires a round cut-out of 210mm and an overall diameter of 244mm, with a mounting depth of 140mm behind the ceiling, so check joist spacing and ceiling void clearance before installation. The speaker presents an 8 ohm load and should be matched with an amplifier capable of handling its 125W power rating; the magnetic, flangeless grille assembly allows for a neat, minimal-trim finish once fitted.
Specifications
| Woofer | 7" Glass Fibre Cone |
| Tweeter | 4 x 5/8" Silk Dome ARC Array |
| Woofer Adjustment | ±15° Pivot (30° Total) |
| Tweeter Adjustment | ±15° Pivot / 359° Rotation |
| Crossover Design | Linkwitz-Riley Symmetrical & Asymmetrical |
| Surround | Butyl Elastomer |
| Impedance | 8 Ohms |
| Sensitivity | 88 dB |
| Power Handling | 125 Watts |
| Frequency Response | 40Hz-20kHz |
| Overall Dimensions | 244mm Diameter x 140mm Depth |
| Cutout Dimensions | 210mm Diameter |
| Grille | Magnetic, Flangeless |
