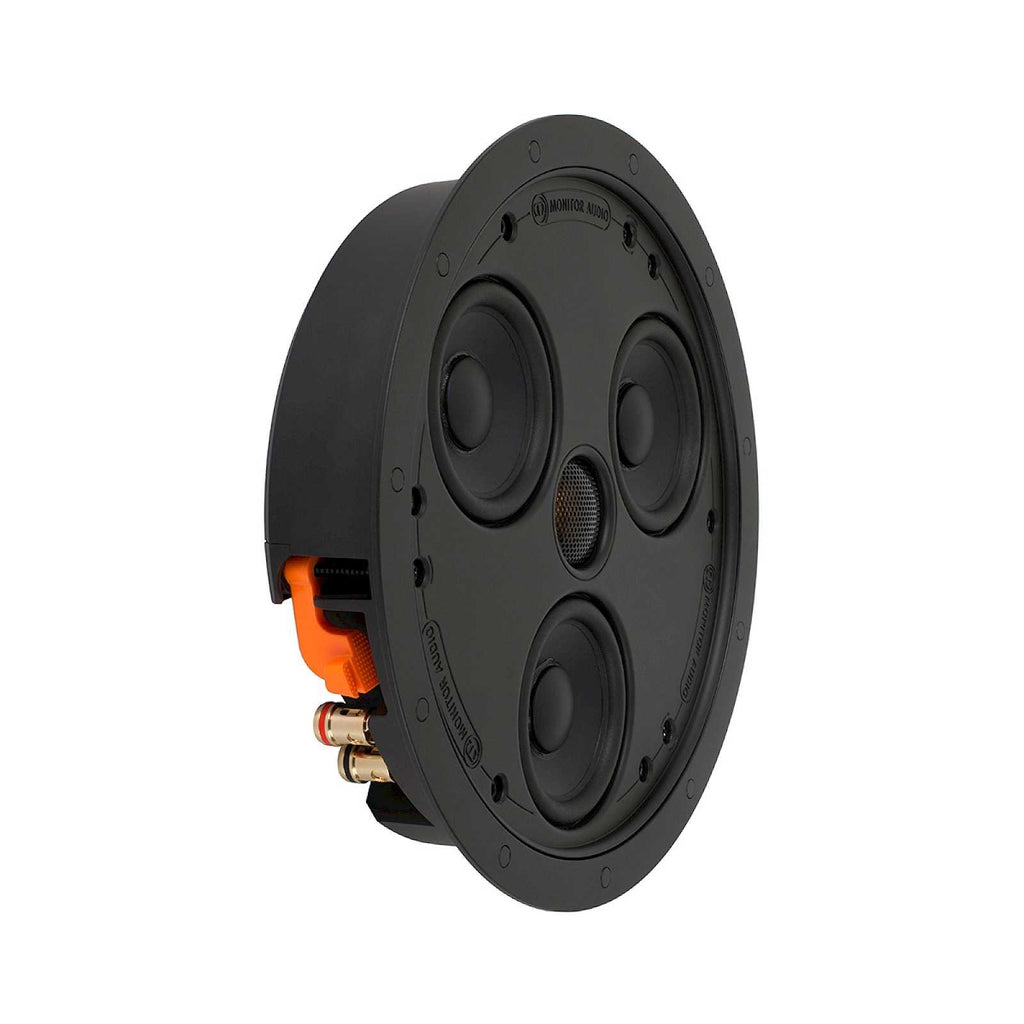

Monitor Audio Super Slim CSS230 Ultra-Slim Ceiling Speaker
Monitor Audio Super Slim CSS230 Ultra-Slim Ceiling Speaker
If the ceiling has a bedroom or other living space above it, or is part of an escape route, building regulations require each speaker to have a fire hood. Hoods also cut sound leaking into the room above.
Allow about 10m per speaker for a typical run back to the amplifier. Webro 16/2 LSZH (low smoke, zero halogen) is the right cable for runs in ceilings and walls.
The Monitor Audio Super Slim CSS230 is designed for spaces where ceiling depth is at a premium, making it a great option for refurbishments, shallow stud ceilings, or installations above insulation and services. Suited to living rooms, kitchens, offices and retail spaces, it brings genuine hi-fi performance to rooms that couldn't normally accommodate a ceiling speaker.
Why we like it
- Remarkably shallow 50mm mounting depth, ideal for tight ceiling voids
- Choice of sealed or open-back installation to suit the room and desired bass response

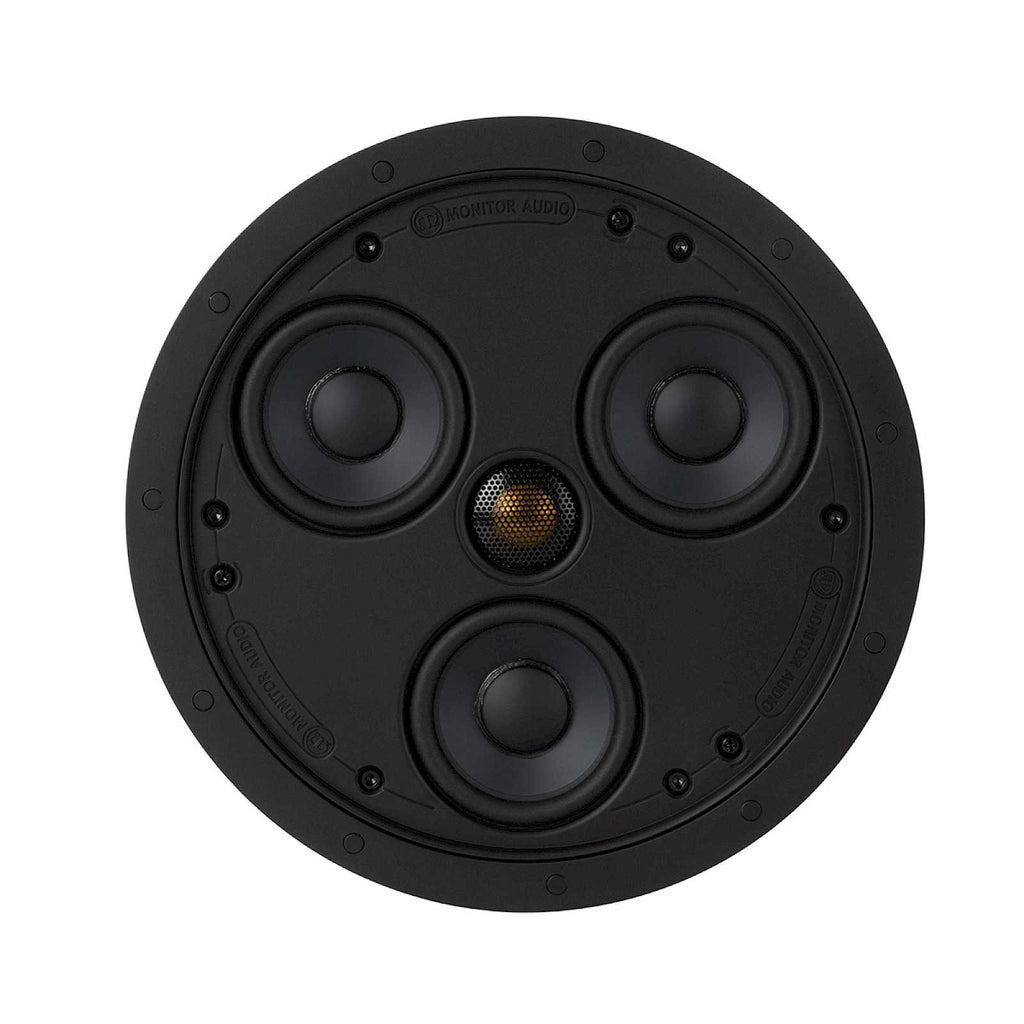

- Radial three-driver layout with a C-CAM Gold Dome tweeter for wide, even coverage

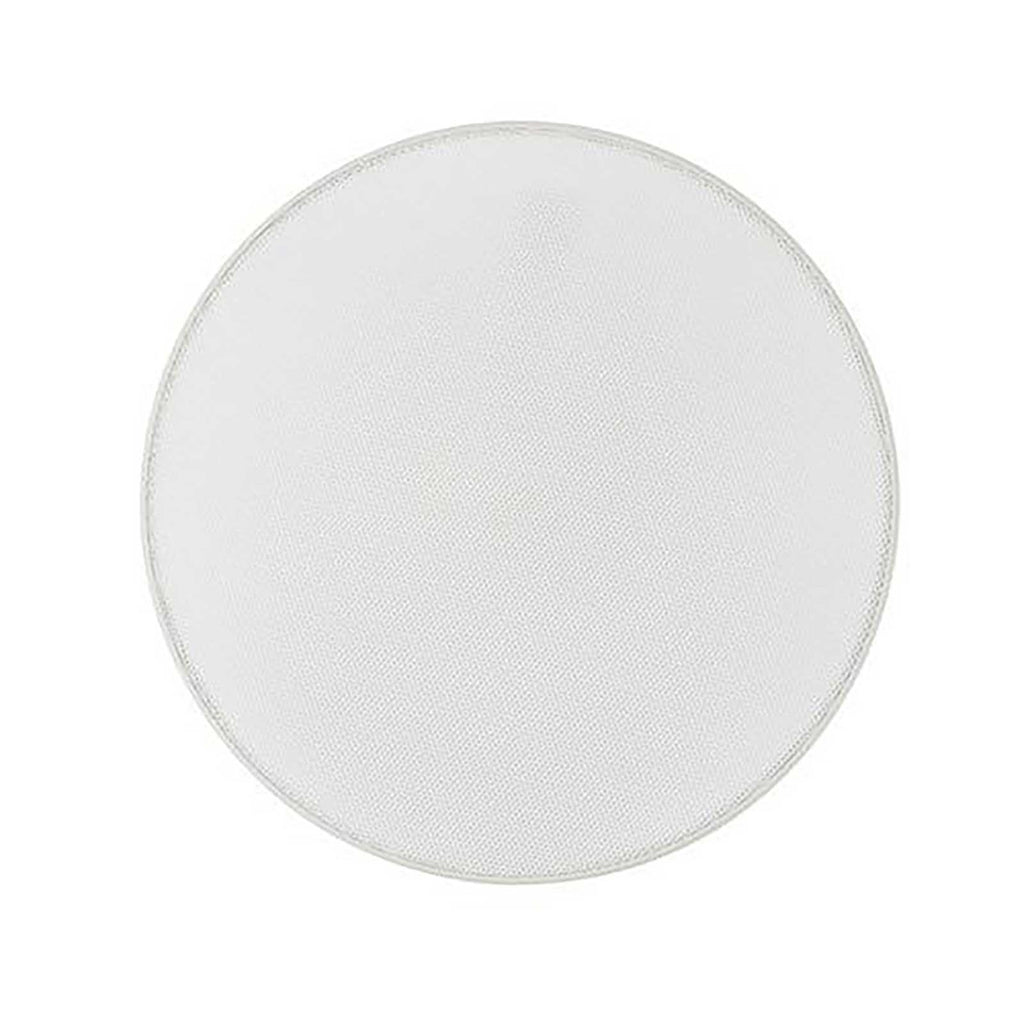

- Trim-less, paintable magnetic grille for a seamless ceiling finish

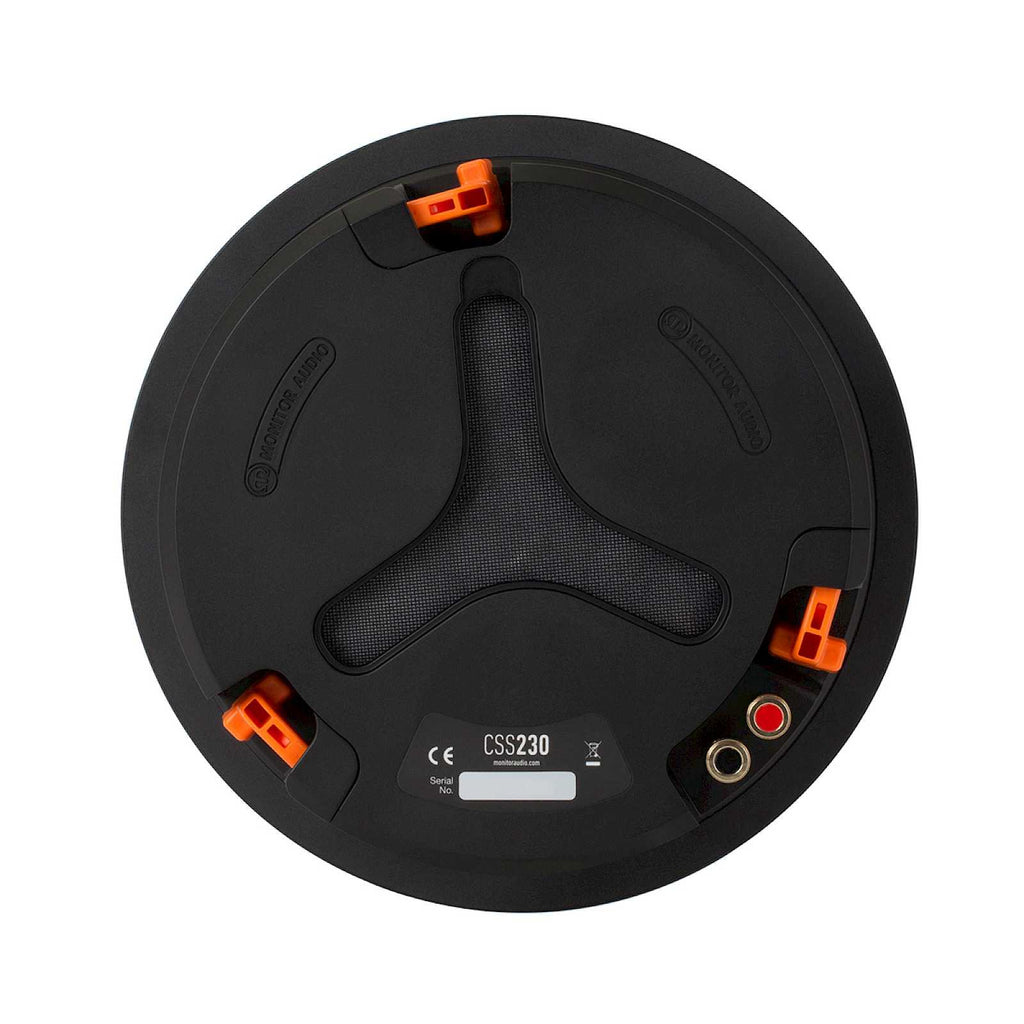

- Robust Tri-Grip Dog Leg fixing system for a quick, secure fit
Installation notes
With a cut-out diameter of 211mm and a mounting depth of just 50mm, the CSS230 fits where many standard ceiling speakers cannot. It pairs well with multi-room amplifiers such as the Sonos Amp or a WiiM Amp for background music zones, and a 100Hz crossover (12dB/Octave minimum) is recommended for optimal integration with a subwoofer in open-back installations. The optional CB6 pre-construction bracket simplifies first-fix planning.
Specifications
| Frequency Response (-6dB) | 100Hz-30kHz (Sealed), 85Hz-30kHz (Open Back) |
| Impedance | 8 ohms |
| Sensitivity | 86dB (1W@1M) |
| Power Handling | 40W RMS (60W with crossover) |
| Drivers | 3 x 3" C-CAM bass/mid, 1 x 19mm C-CAM Gold Dome tweeter |
| Overall Diameter | 250mm (round grille) / 249 x 249mm (square grille) |
| Cut-Out Diameter | 211mm |
| Mounting Depth | 50mm |
