Monitor Audio CF230 3" Mini Flush-Fit In-Ceiling Speaker
£315
Skip to product information
Sold asSingle
Impedance8Ω
Amp power10–30W
WarrantyLifetime
GrilleIncluded
Monitor Audio CF230 3" Mini Flush-Fit In-Ceiling Speaker
£315
£262.50 ex VAT
Order by 1pm Mon–Fri for same-day dispatch
Free tracked UK delivery · Next day £11.99
30-day returns · full manufacturer warranty
You'll need an amplifier
These are passive speakers, so they need an amplifier to power them (8Ω, 10–30W recommended). Either of these will drive a pair and stream music from your phone.
Need a fire hood?
If the ceiling has a bedroom or other living space above it, or is part of an escape route, building regulations require each speaker to have a fire hood. Hoods also cut sound leaking into the room above.
Mounting bracket required

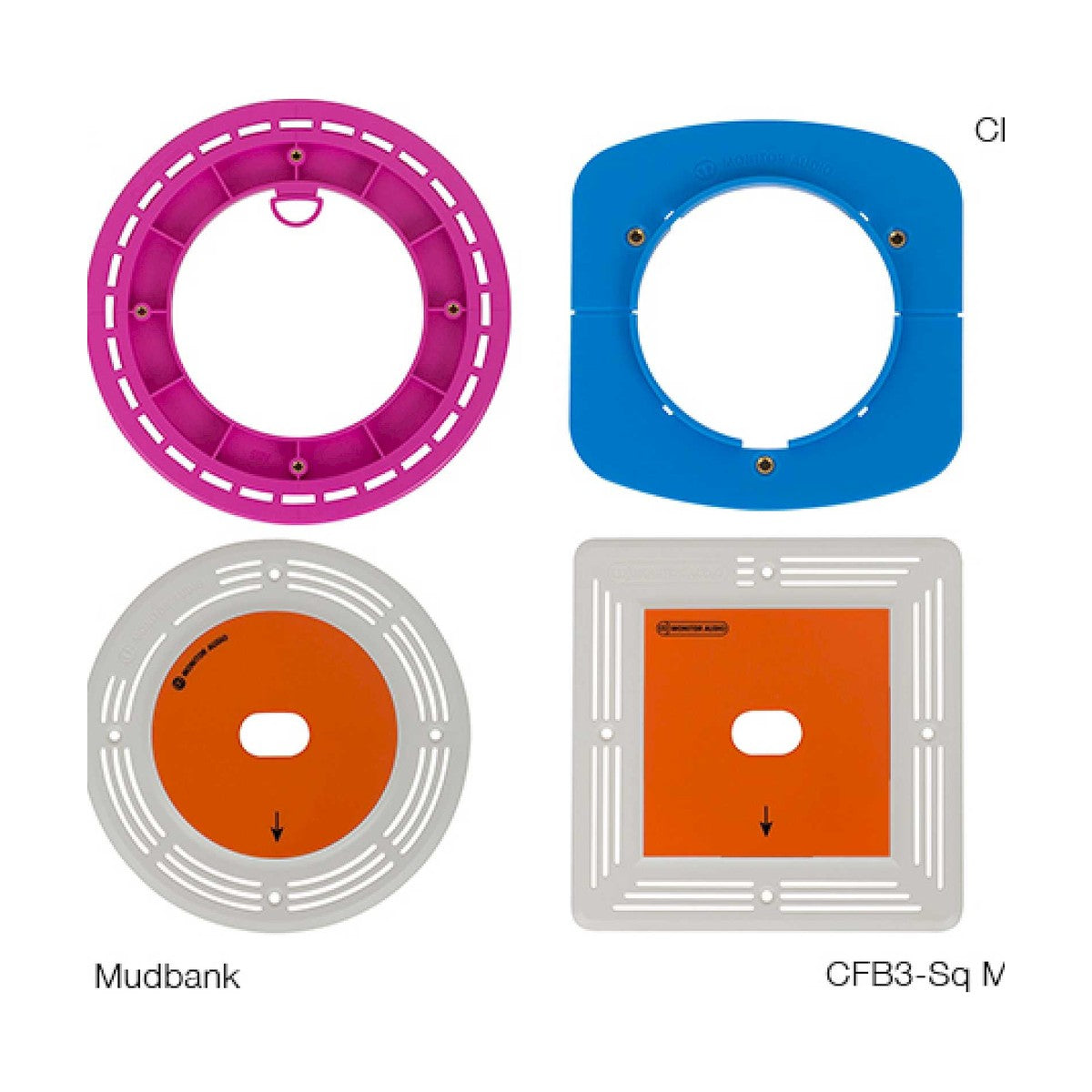

Each CF230 needs one bracket (not included): CFB3-KIT to retrofit into an existing ceiling (90mm hole), or CFB3-R / CFB3-SQ for a new-build flush finish with a round or square grille (120mm hole).
Need speaker cable?
Allow about 10m per speaker for a typical run back to the amplifier. Webro 16/2 LSZH (low smoke, zero halogen) is the right cable for runs in ceilings and walls.
The Monitor Audio CF230 is a 3" mini flush-fit in-ceiling speaker, designed for installers and architects who need the most visually discreet speaker solution possible. It suits living rooms, kitchens and multi-room installations where a compact, near-invisible speaker is required, whether fitted singly, in stereo pairs, or in larger multiples across a space.
Why we like it

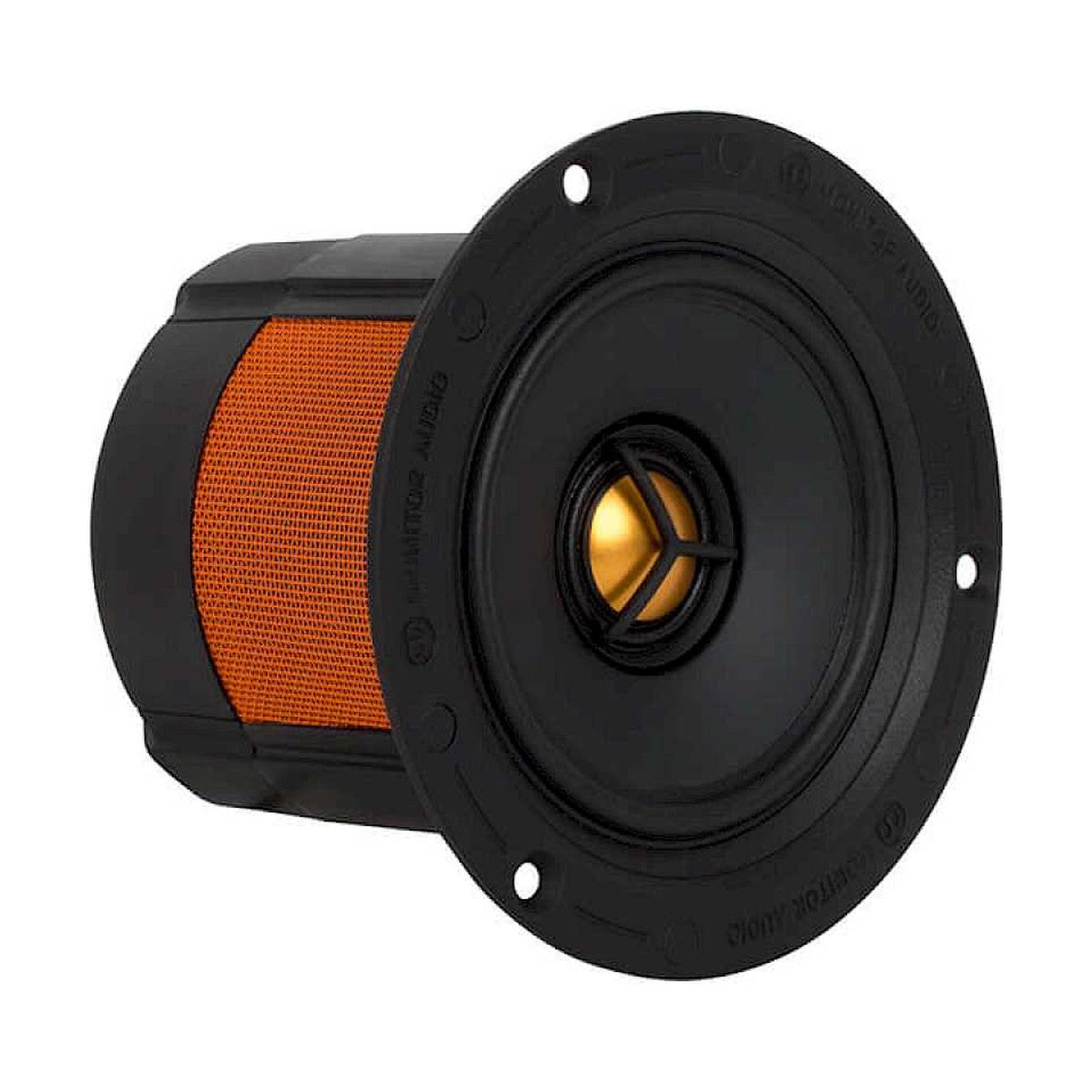

- Coincident driver design houses the 3" C-CAM bass/midrange driver and 19mm C-CAM Gold Dome tweeter in a single compact assembly
- Choice of flush, trimless pre-construction fitting or straightforward retrofit installation into existing ceilings

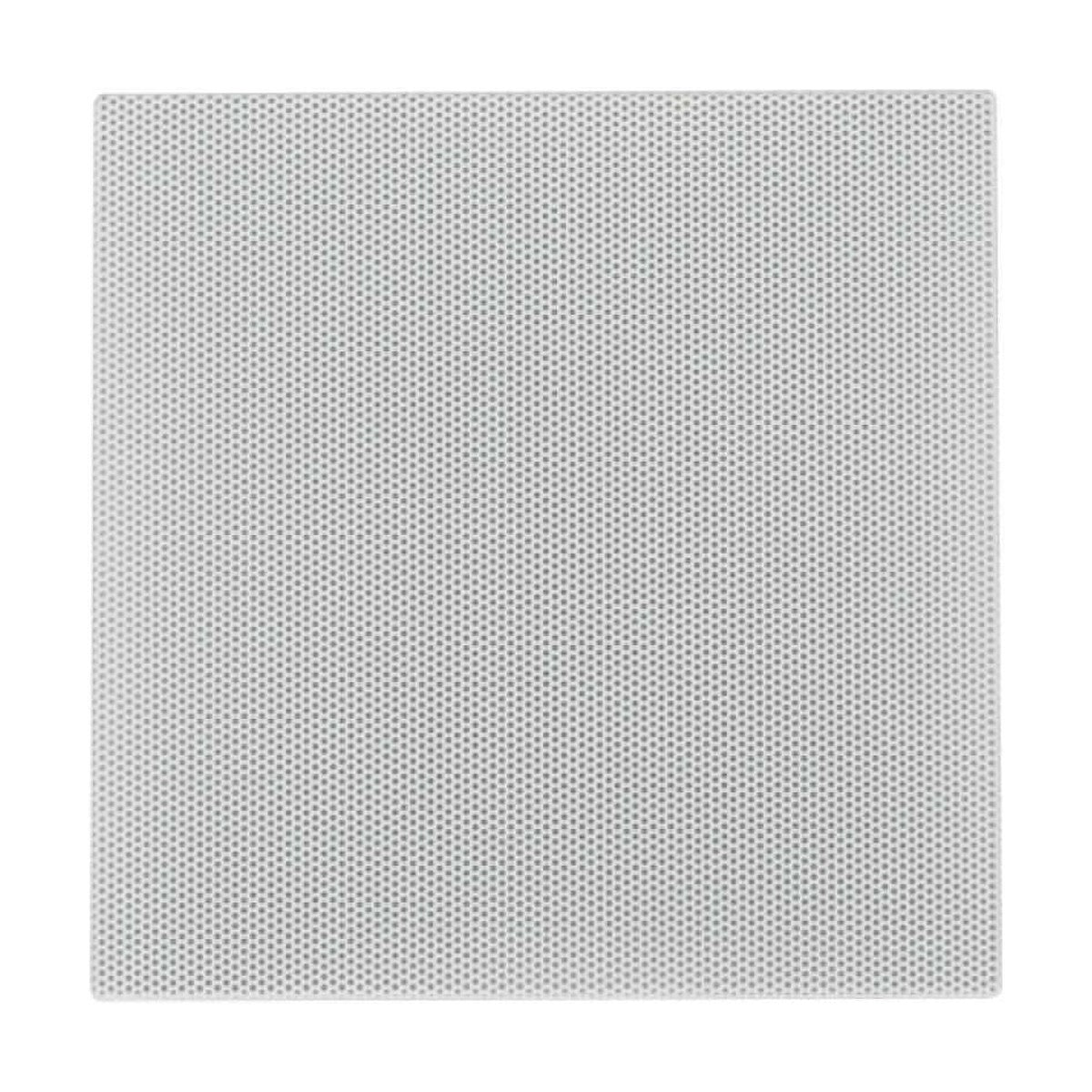

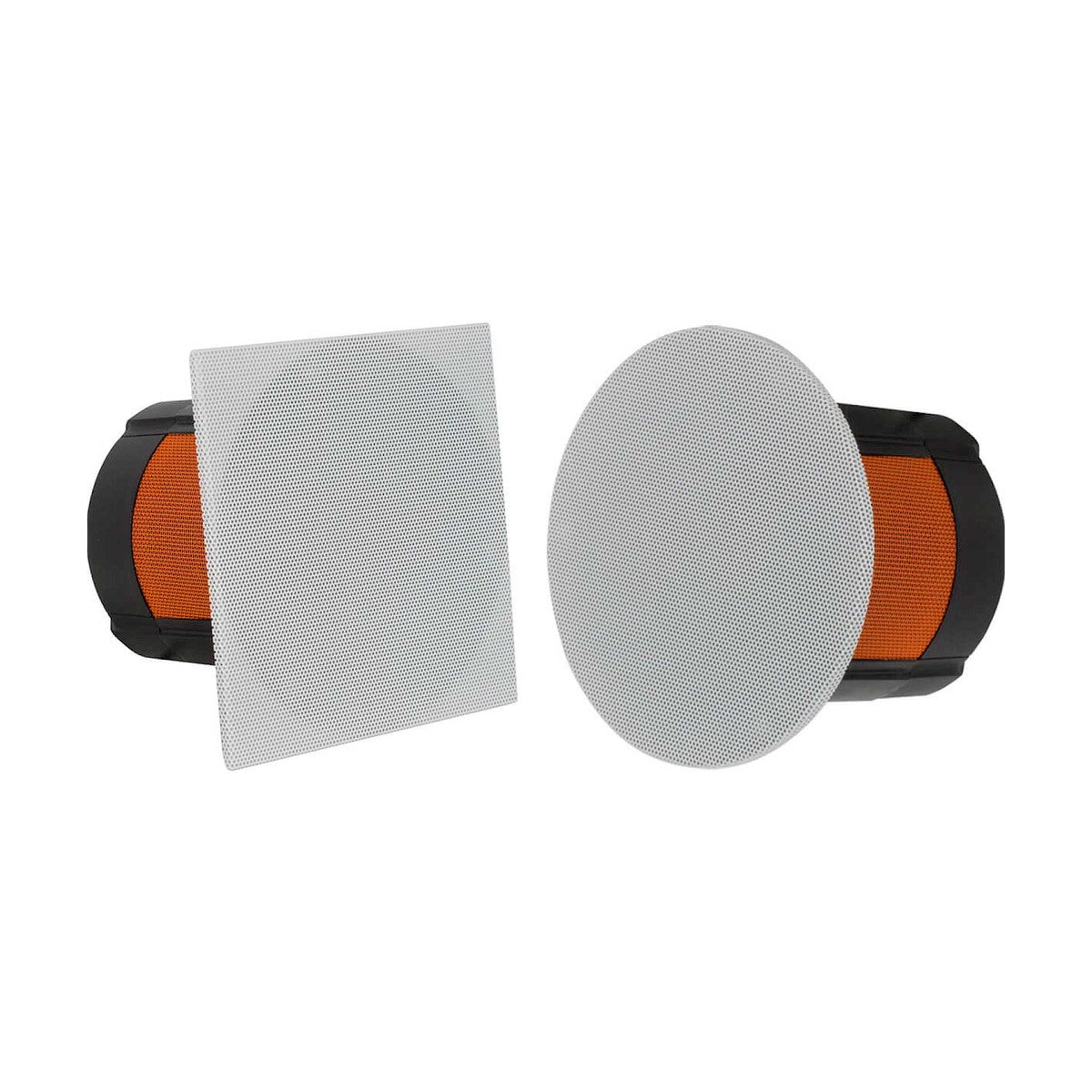

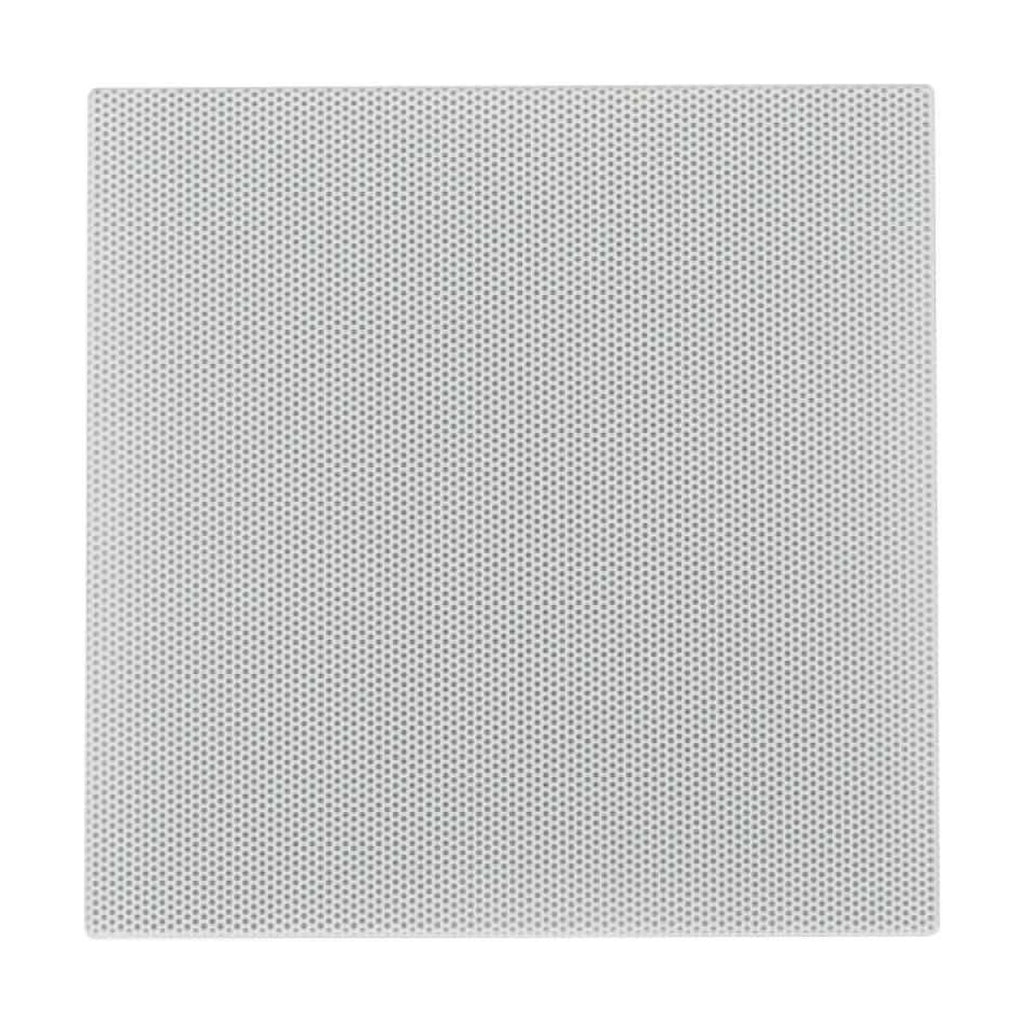

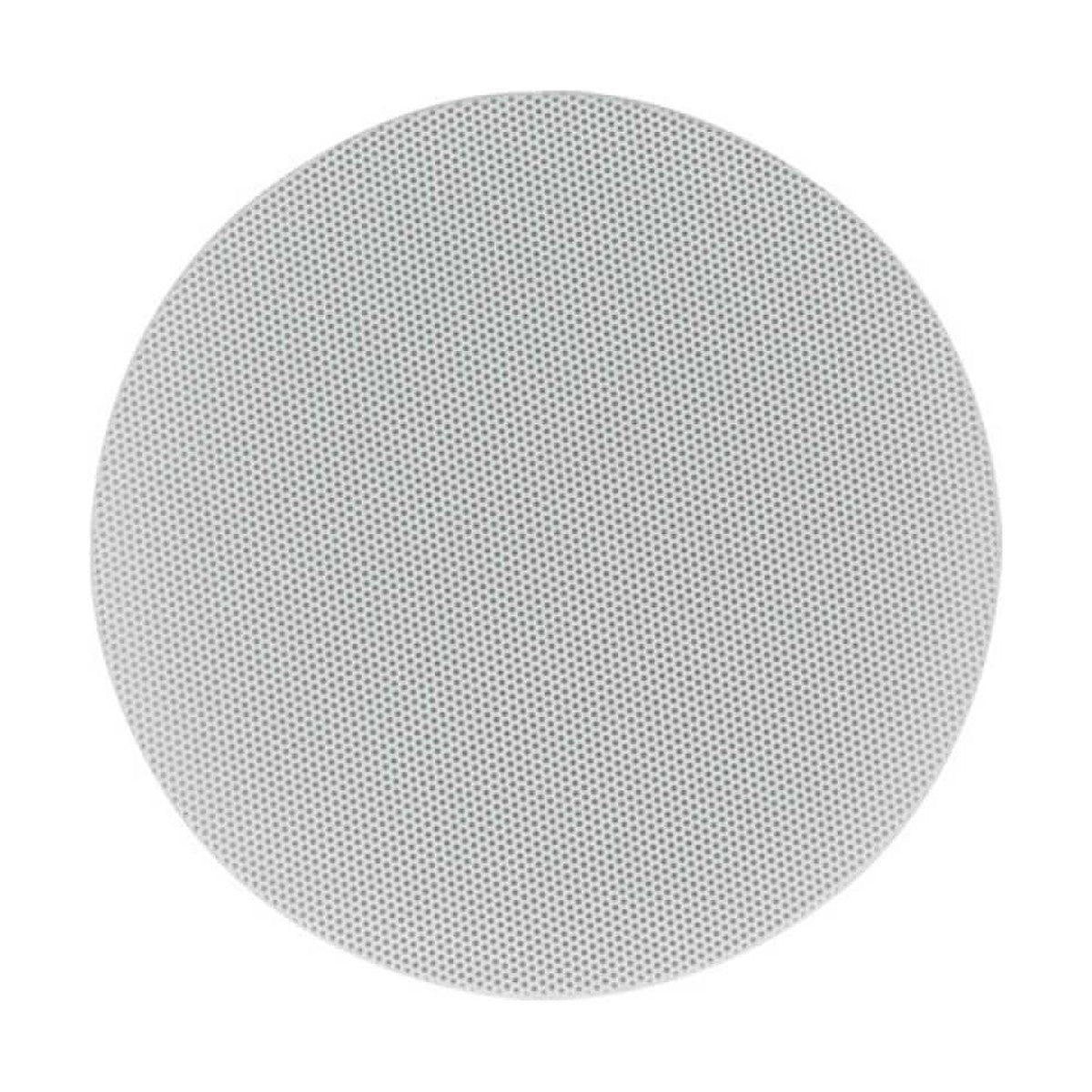

- Round or square grille options available, with a paintable white grille to blend into any ceiling
- One-piece driver and chassis moulding maximises driver size relative to grille size, while a fully enclosed rear assembly with fine mesh keeps out dust and building debris
- Easy to drive at 8 ohms, pairing comfortably with a single stereo amplifier for a pair, or multi-channel amplifiers for larger installations
Installation notes

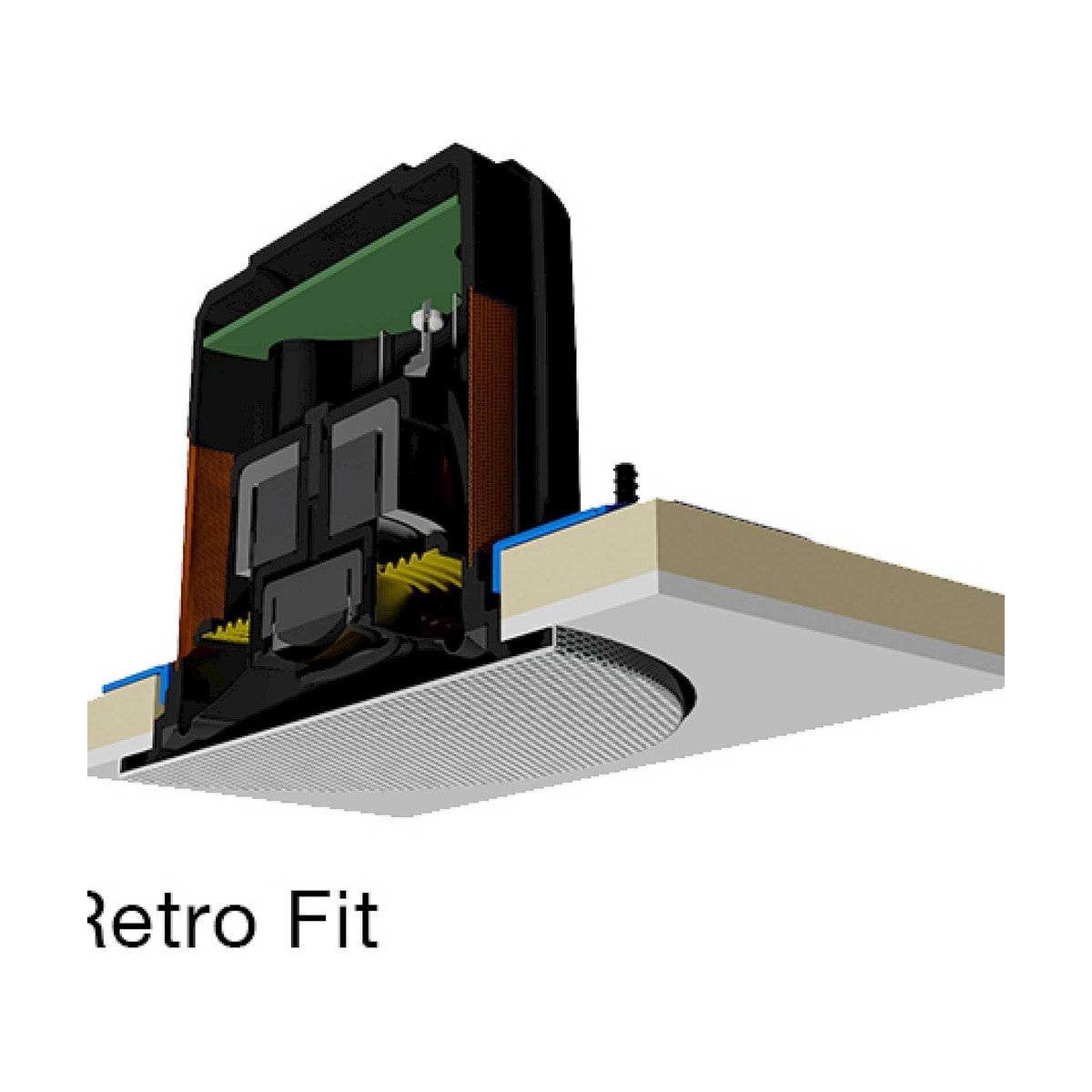

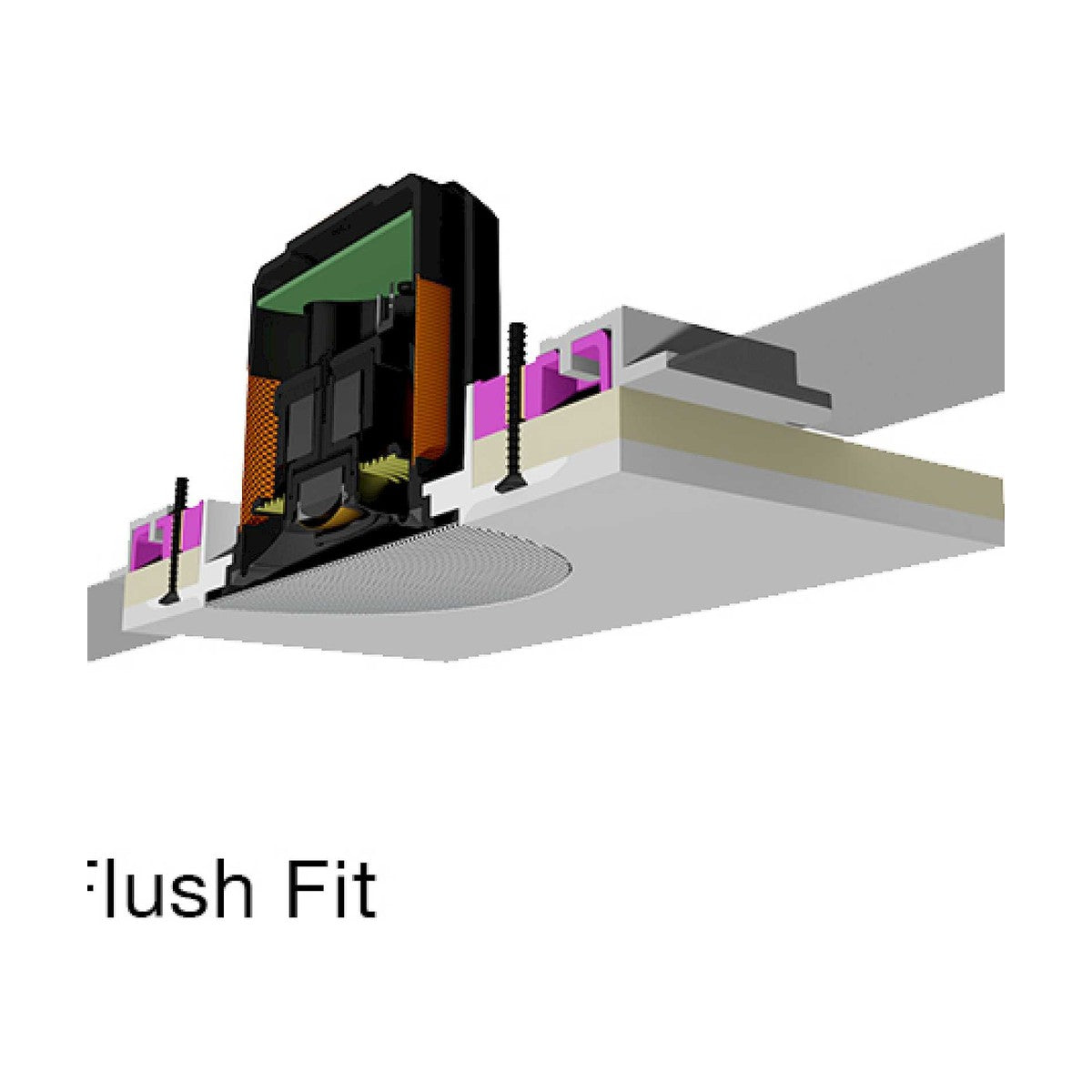

Each CF230 is sold individually and requires one mounting bracket per speaker, sold separately. For retrofitting into existing ceilings, use the CFB3-KIT, which needs a 90mm cut-out hole and fixes behind plasterboard with just three screws. For new-build, pre-construction installations, choose the CFB3-R (round) or CFB3-SQ (square) bracket for a seamless flush fit, requiring a 120mm cut-out hole. Mounting depth is 81.5mm, so ensure adequate ceiling void clearance. With a nominal impedance of 8 ohms and a recommended amplifier power of 10-30W (full range) or up to 100W when used with a high-pass crossover filter at 120Hz, the CF230 pairs well with stereo or multi-channel amplifiers; it can also be partnered with the Monitor Audio ICS-8 in-ceiling subwoofer for extended bass response.
Specifications
| Frequency Response (-6 dB) | 100 Hz - 25 kHz |
| Sensitivity (1W@1M) | 82.5 dB |
| Nominal Impedance | 8 ohms |
| Maximum SPL | 98 dBA (each, full range); 103.3 dBA (each, using crossover) |
| Power Handling (RMS) | 30 Watts (full range, IEC268-5 rating); 100 Watts Music program (using high pass crossover filter @120 Hz) |
| Recommended Amplifier Requirements | 10-30 Watts (full range); 10-100 Watts (using high pass crossover filter @120 Hz) |
| Drive Unit Complement | 3" Bass/mid-range driver with C-CAM cone; coincident mounted 19 mm tweeter with C-CAM Gold Dome |
| Overall Diameter (Including Grille) | 112 mm |
| Mounting Depth | 81.5 mm |
| Cut-Out Hole Diameter | Flush 120 mm; Retrofit 90 mm |

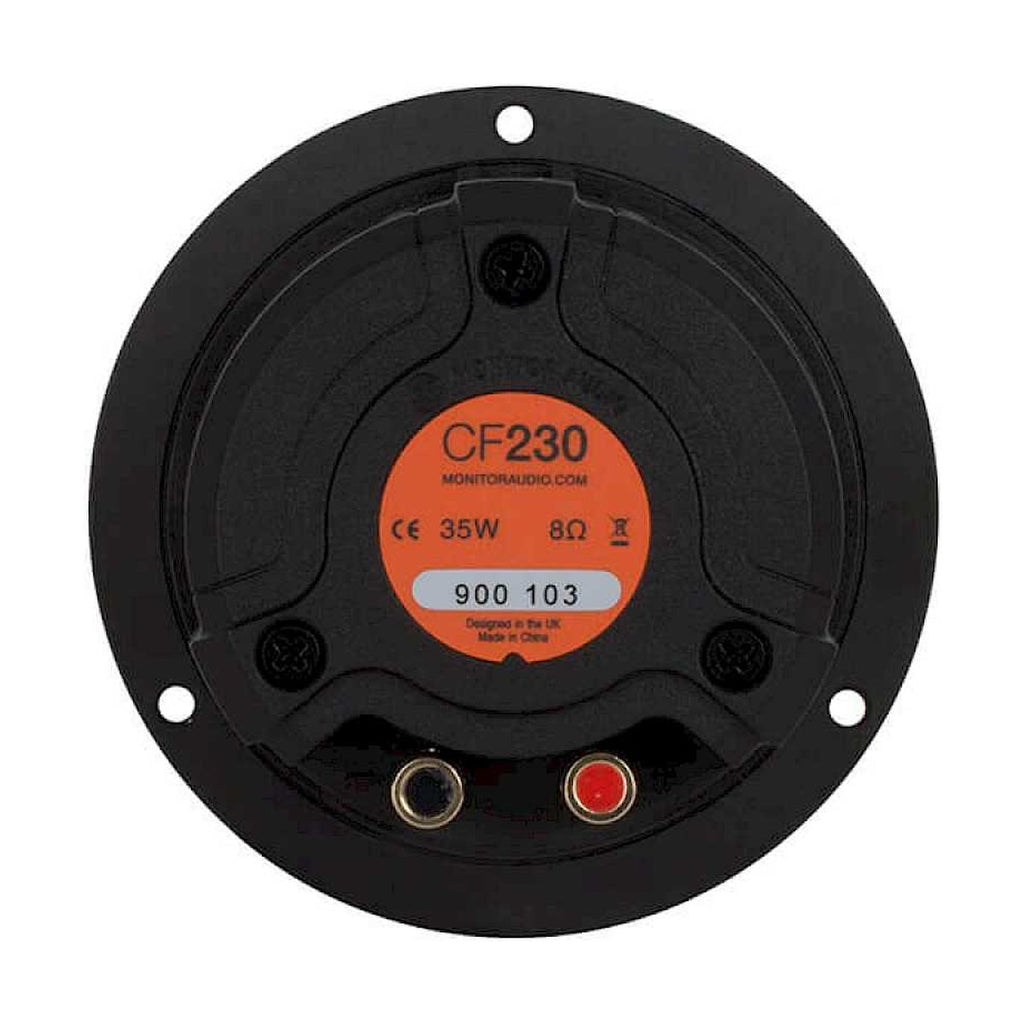

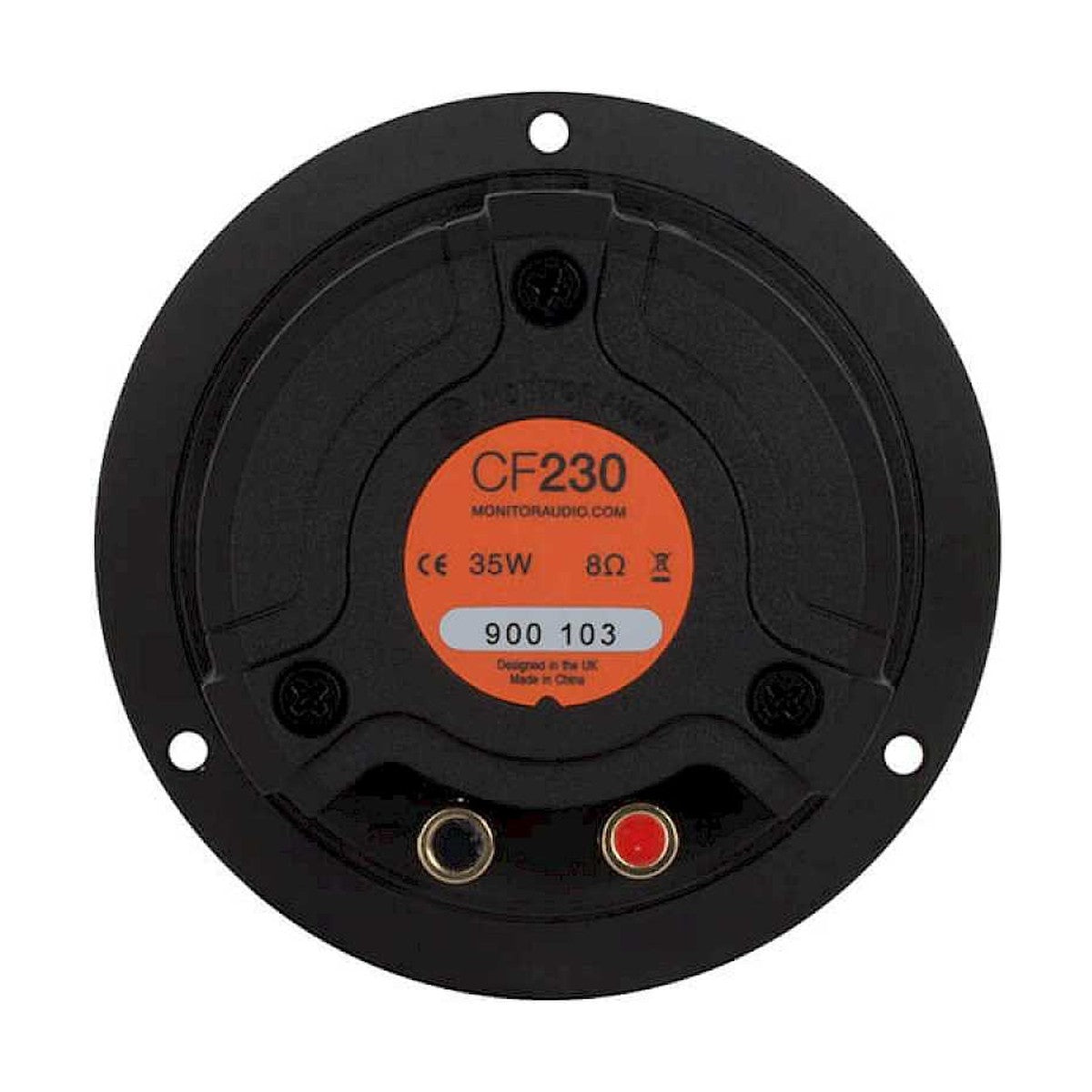

| Connection | Sprung push type terminals, gold plated |
| Weight | 0.44 kg |
| Colour / Finish | White grille, paintable |
| Pre-Construction Bracket | Flush Fit - CFB3-R (round) or CFB3-SQ (square); Retrofit - CFB3-KIT; bracket coloured pink, included in above kits |
| Sold as | Single |
Questions we get asked

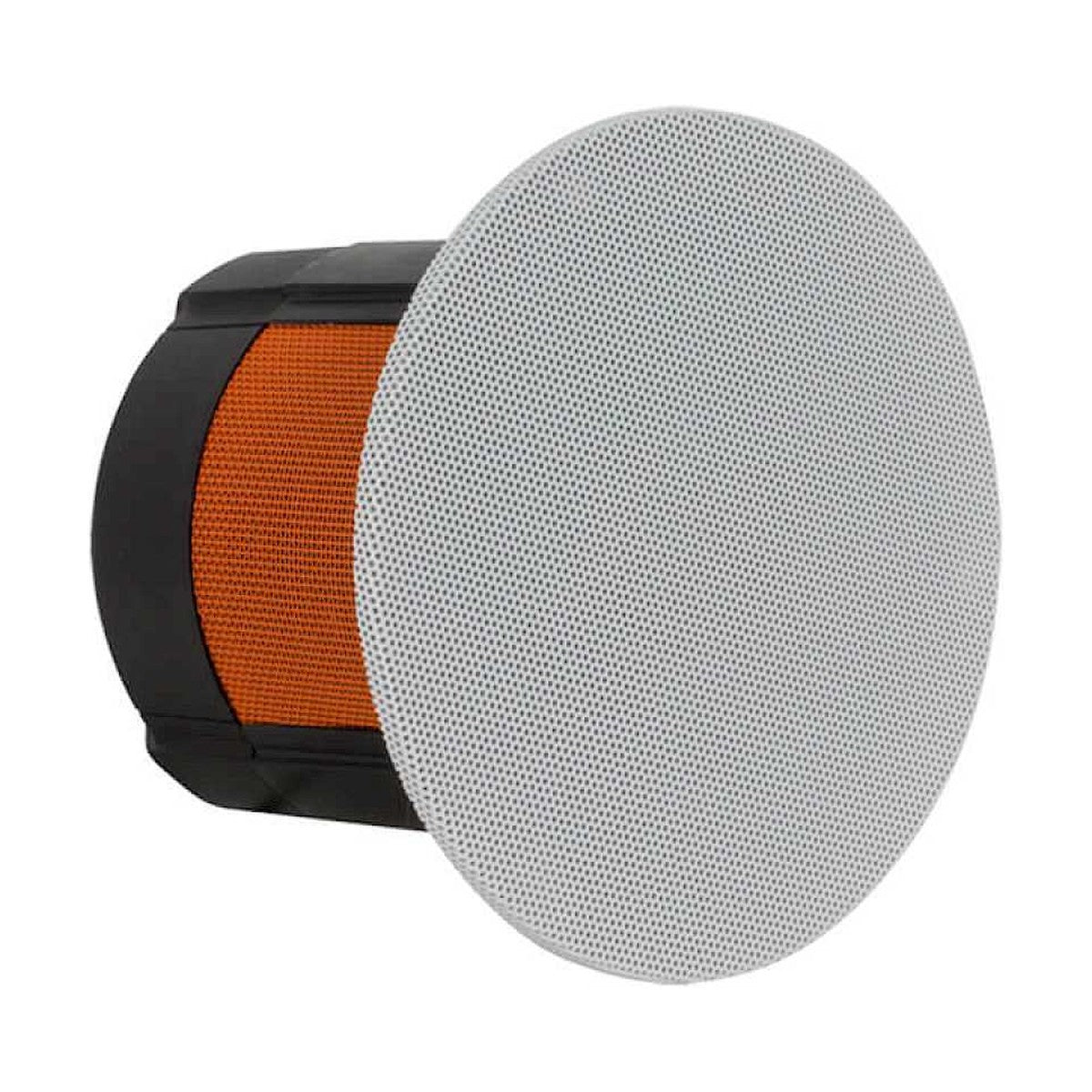

Does it come with a grille?
Yes. Every ceiling and in-wall speaker we sell comes with its grille in the box. Manufacturer photos often show the speaker with the grille removed so you can see the drivers, but the grille is always included.
Will it fit my ceiling?
You'll need a 120mm cut-out and at least 82mm of depth behind the ceiling surface. The visible trim is 112mm across. Standard plasterboard ceilings with joists are usually fine; check for pipes, cables and insulation before cutting. Not sure? Send us a photo or plan and we'll check it for you.
Do I need an amplifier?
Yes. These are passive speakers, so they need an amplifier or AV receiver to drive them. They're rated at 8Ω with 10–30W recommended amplifier power. For most rooms a Sonos Amp or WiiM Amp is ideal: each drives a pair and streams from your phone. You can also buy a package with the amp included and save 5%.
Do I need a fire hood?
If there's a habitable room above (for example a bedroom), or the ceiling forms part of a fire escape route, Building Regulations require each speaker to be fire-rated, usually with a fire hood fitted over the back. The hood that fits this speaker is shown above, next to Add to cart. Hoods also cut sound travelling to the room above. See all fire hoods.
How many speakers do I need?
As a rule of thumb: a pair for most bedrooms, kitchens and living rooms up to about 20m², two pairs for large open-plan spaces, and a single stereo speaker (T2 / stereo models) for small rooms like en-suites. For home cinema, use 5 or 7 speakers plus a subwoofer. Our free design service will plan positions and sizes from your floorplan.
Is it sold singly or as a pair?
Priced per speaker. Add the quantity you need; most rooms use a pair.
When will it arrive?
Orders placed by 1pm Monday to Friday are dispatched the same day. Standard tracked delivery is £7.99, or free on orders over £50; next working day delivery is £11.99. Delivery details.
Can I return it?
Yes. Unused items can be returned within 30 days of delivery, and every product carries the full manufacturer warranty. Returns & warranty.
