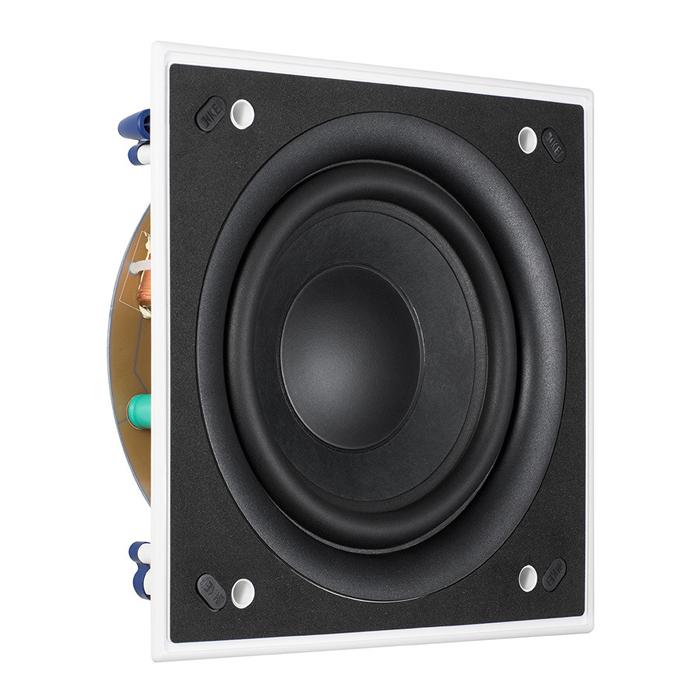

KEF Ci200QSb-THX 8" In-Wall Subwoofer
KEF Ci200QSb-THX 8" In-Wall Subwoofer
Allow about 10m per speaker for a typical run back to the amplifier (this listing is a pair). Webro 16/2 LSZH (low smoke, zero halogen) is the right cable for runs in ceilings and walls.
The KEF Ci200QSb-THX is a pair of 8-inch in-wall subwoofers engineered for serious home cinema builds, multi-room installations and trade projects where deep bass needs to disappear into the wall. THX Ultra-2 and Select-2 certified, this pair is designed to deliver cinema-grade low end without a visible subwoofer cabinet, making it ideal for dedicated cinema rooms, media lounges and feature installations where aesthetics matter as much as performance.
Why we like it
- THX Ultra-2/Select-2 certification guarantees flat response, low distortion and high output
- Flexible passive or active (KASA500) operation to suit different system configurations

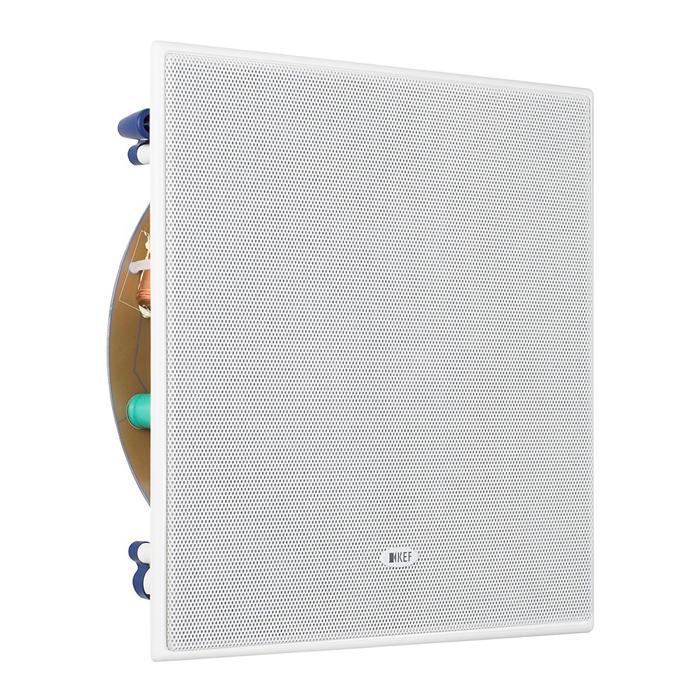

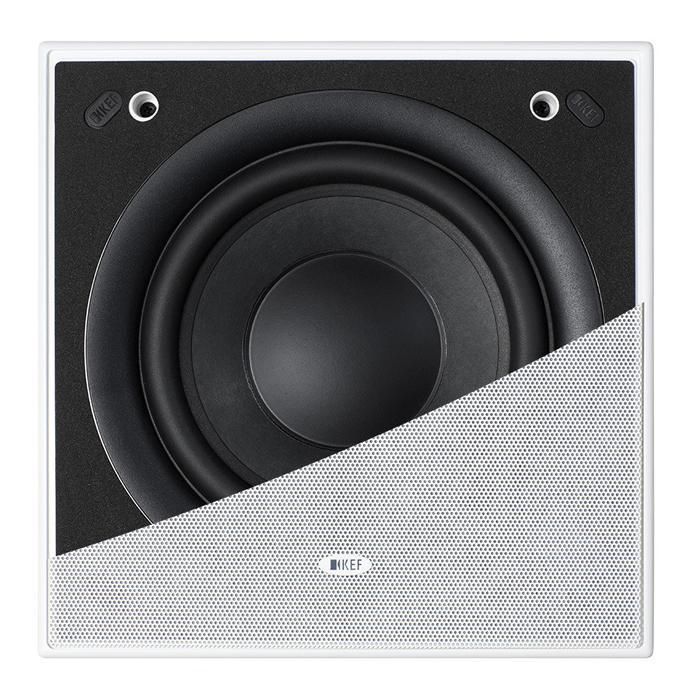

- Ultra-Thin Bezel and paintable magnetic grille blend into any décor
- IP64 rating adds durability for garages and less climate-controlled rooms

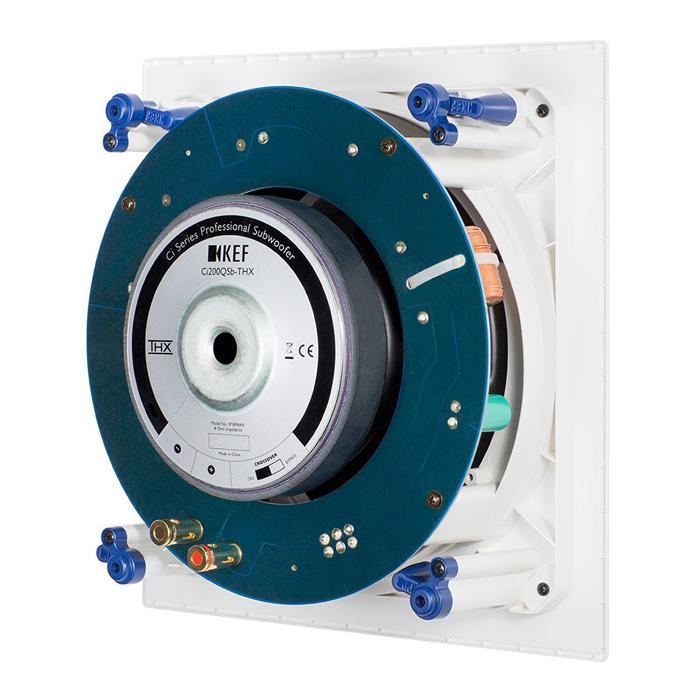

- Dog-leg mounting system speeds up installation into standard wall cavities
Installation notes
Each subwoofer requires a 238 x 238mm cut-out and a mounting depth of 101.6mm, with a compatible wall cavity thickness of 6-40mm. In passive mode, pair with a 10-150W amplifier; for full THX active performance, use alongside KEF's KASA500 amplifier, particularly when installing multiple pairs for larger rooms.
Specifications
| Driver | 8" (200mm) dynamic LF driver |
| Impedance | 6 Ohm (passive mode) |
| Sensitivity | 85dB (passive mode) |
| Frequency Response | 40Hz-100Hz (passive); 18Hz-140Hz (active) |
| Crossover | 100Hz (passive mode) |
| Amplifier Power | 10-150W (passive); KASA500 (active) |
| Cut-Out Size | 238 x 238mm |
| External Dimensions | 273 x 273 x 106mm |
| Mounting Depth | 101.6mm; wall thickness 6-40mm |
| Weight (each) | 3.3kg |
| IP Rating | IP64 |
