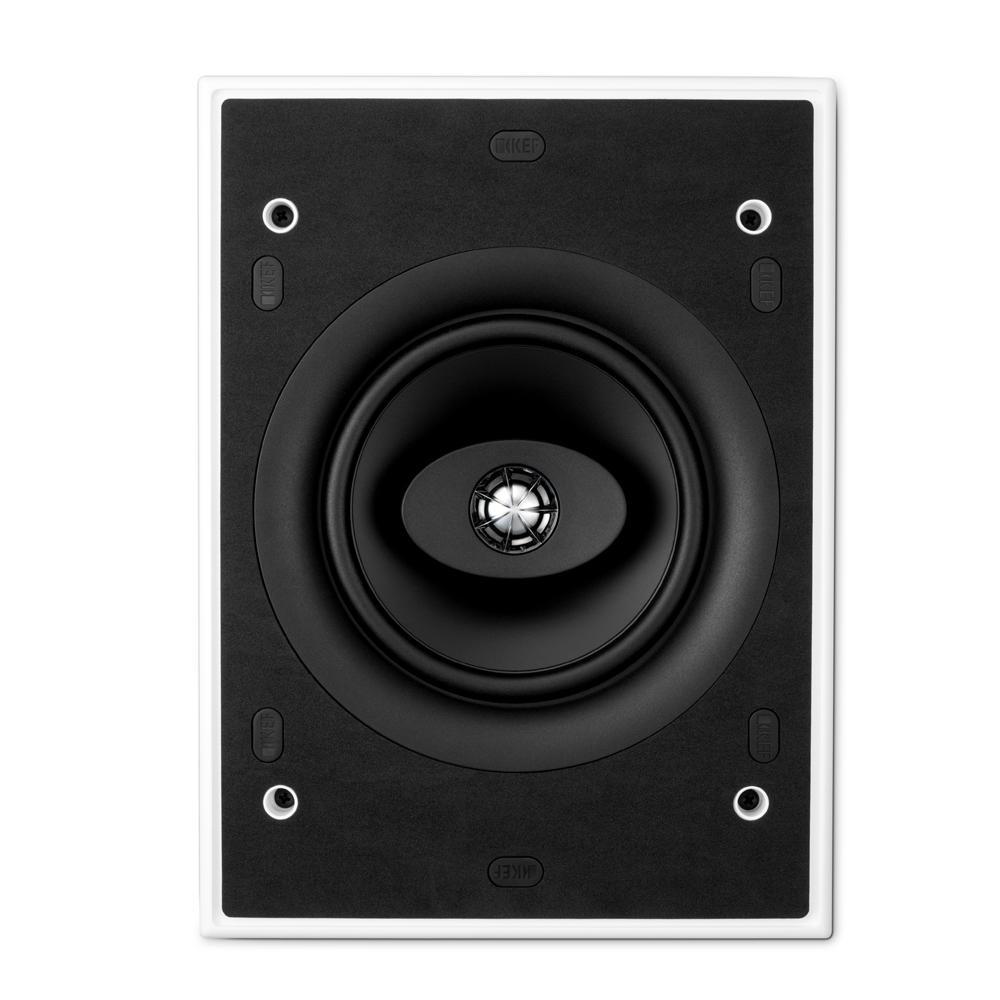

KEF Ci160CL 6.5" Rectangular In-Wall Speaker
KEF Ci160CL 6.5" Rectangular In-Wall Speaker
Allow about 10m per speaker for a typical run back to the amplifier. Webro 16/2 LSZH (low smoke, zero halogen) is the right cable for runs in ceilings and walls.
The KEF Ci160CL is a shallow-mount, rectangular in-wall speaker from KEF's acclaimed Ci range, built for homeowners and installers who want high-fidelity sound without visible hardware. It suits living rooms, hallways, en-suites and garden rooms alike, offering IP64 weather resistance alongside KEF's renowned Uni-Q driver technology.
Why we like it
- Uni-Q coincident driver delivers a single point-source of sound for consistent tonal balance wherever you sit
- Tangerine Waveguide widens high-frequency dispersion and reduces unwanted diffraction
- IP64 rating means it copes well with moisture, making it suitable for bathrooms and covered outdoor areas
- Slim 84.5mm mounting depth fits neatly into stud or masonry walls with limited cavity space

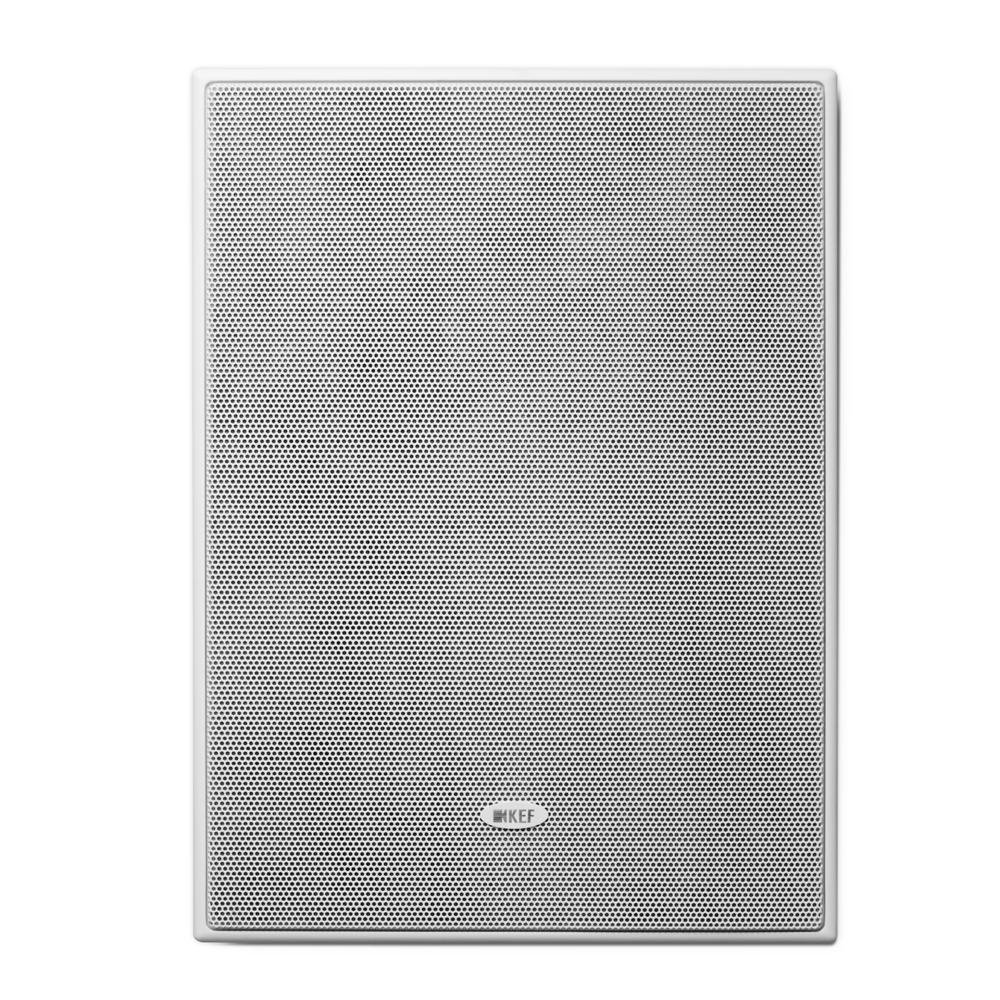

- Paintable magnetic grille and ultra-thin bezel blend seamlessly into any ceiling or wall finish
Installation notes
With a mounting depth of just 84.5mm and a cut-out of 274 x 194mm, the Ci160CL is designed for straightforward retrofit or new-build installation. The 8 Ohm passive design pairs well with a Sonos Amp or WiiM Amp for simple streaming setups, or with a traditional AV receiver for home cinema use. An optional RIF160L installation frame and RNC160L rear enclosure are available for enhanced acoustic performance and fire-rated cavities.
Specifications
| Impedance | 8 Ohm nominal |
| Recommended Amplifier Power | 10-100W |
| Driver | 160mm Uni-Q woofer with 16mm aluminium dome tweeter |
| Frequency Response | 52Hz-20kHz (±6dB, open-backed) |
| Sensitivity | 89dB (2.83V/1m) |
| IP Rating | IP64 |
| Overall Dimensions (HxWxD) | 303 x 223 x 88.7mm |
| Cut-out (HxW) | 274 x 194mm |
| Mounting Depth | 84.5mm |
| Weight | 1.6kg |
