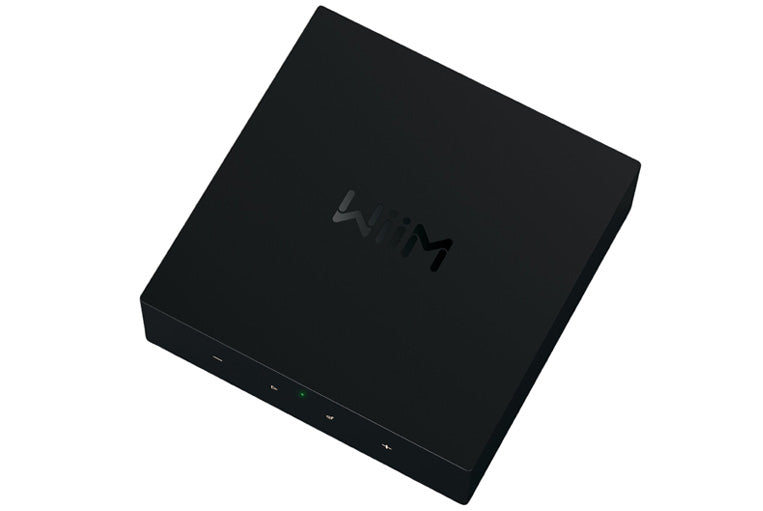

WiiM CI MOD S Hi-Res Music Streamer
WiiM CI MOD S Hi-Res Music Streamer
The WiiM CI MOD S is a compact, rack-friendly streaming source designed for custom installation projects. Based on the popular WiiM Pro Plus, it delivers Hi-Res audio from a wide range of services to a zone amplifier, making it well suited to multi-room systems where a dedicated streaming source is needed per zone.
Why we like it
- Audiophile-grade AKM AK4493SEQ DAC supporting Hi-Res Audio up to 24-bit/192kHz
- Comprehensive input and output options, including analogue RCA, digital optical and digital coaxial
- Wide service support, including Chromecast, DLNA, Spotify Connect, TIDAL Connect, Amazon Music, Qplay and Roon Ready
- Built-in 10-band graphic and parametric EQ plus room correction for fine-tuned sound
- Integrates with leading control platforms, including Control4, RTI, URC and Josh.ai
Installation notes

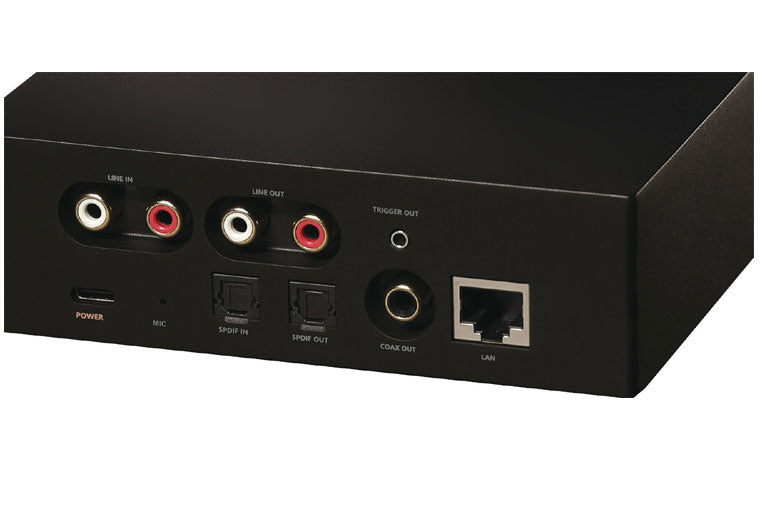

The MOD S measures 140 x 140 x 42mm, allowing three units to sit side-by-side on a standard 19-inch rack shelf (rack mount kit supplied separately). It connects to a zone amplifier via analogue RCA or digital optical/coaxial outputs, with a 12V trigger output available for system integration. Power is via USB Type-C, requiring 5V at 1.5A or higher (5V, 2A adapter bundled). As a streaming source rather than a powered amplifier, it is intended to feed a separate zone amplifier driving ceiling, in-wall or other loudspeakers.
Specifications
| Power Input | USB Type-C, 5V 1.5A or higher (5V 2A adapter bundled) |
| Digital Audio Output | Bit-perfect, up to 192kHz/24-bit via optical or coaxial |
| Network | 802.11 b/g/n/ac 2.4GHz and 5GHz dual band Wi-Fi, 10/100M Ethernet |
| Bluetooth | Bluetooth 5.1 |
| Audio Input | 1 x Analogue RCA Line input, 1 x SPDIF Optical input (up to 192kHz/24-bit) |
| Audio Output | 1 x Analogue RCA Line output, 1 x Digital Optical (SPDIF) output, 1 x Digital Coaxial output (up to 192kHz/32-bit) |
| DAC | AKM AK4493SEQ |
| Trigger Out | 3.5mm Trigger out / 12V trigger |
| SNR | 120 dB |
| THD+N | 0.00032% (-110 dB) |
| Audio Codecs | MP3, AAC, ALAC, APE, FLAC, WAV, WMA, OGG |
| Equalizer | 24 preset EQ settings; 10-band graphic EQ; 10-band parametric R/L EQ; built-in room correction |
| Streaming Services | Chromecast Audio, DLNA, Spotify Connect, TIDAL Connect, Amazon Music Casting, Qplay 2.0, Roon, plus Deezer, TuneIn, Qobuz, SoundCloud, Pandora, iHeartRadio, vTuner, Napster, SoundMachine, BBC Radio, Calm Radio, Radio Paradise, Sound Track Your Brand |
| Control Platforms | Control4, RTI, URC, Josh.ai |
| Buttons | Touch buttons: Play/Pause/Setup, Volume +, Volume -, Preset |
| Weight | 330g |
| Dimensions | 140 x 140 x 42mm (L x W x H) |
| What's in the box | WiiM CI MOD S, Optical cable, Stereo RCA cable, Type C cable, Adapter, Screws (3) |
