WiiM Amp Ultra 200W Streaming Amplifier with Touchscreen
WiiM Amp Ultra 200W Streaming Amplifier with Touchscreen
The WiiM Amp Ultra is a streaming amplifier that combines network streaming, HDMI ARC home cinema integration and high-power amplification in a single compact unit. Delivering 100W per channel into 8Ω or 200W into 4Ω, it is equally suited to driving a pair of bookshelf or floor-standing speakers as it is to powering a multi-zone in-ceiling or in-wall installation. Its touchscreen control, extensive streaming support and room correction make it a strong centrepiece for a modern multi-room or home cinema system.
Why we like it
- 100W per channel at 8Ω (200W at 4Ω) from dual TI TPA3255 Class-D amplifier chips, suitable for driving up to four passive speakers
- ESS ES9039Q2M SABRE DAC and six TI OPA1612 op-amps for low-distortion, high-resolution playback up to 24-bit/192kHz
- Post Filter Feedback (PFFB) technology for stable, load-independent performance across different speaker types, including in-wall speakers
- Built-in RoomFit room correction automatically tunes output to the room and connected speakers
- HDMI ARC input with Dolby Digital decoding and a dedicated subwoofer output for integrated TV and home cinema sound
Installation notes

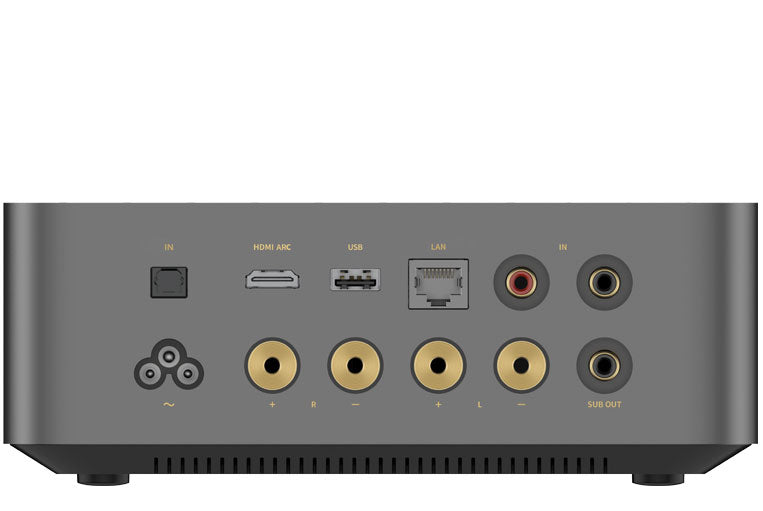

The Amp Ultra measures 200 x 211 x 76.2mm and is designed for shelf or cabinet placement rather than in-wall mounting. Speaker connections are via gold-plated binding posts supporting banana plugs or bare wire, with an output impedance range of 2–8Ω, making it compatible with most passive ceiling, in-wall and standmount speakers. A dedicated mono RCA subwoofer output is provided for adding low-frequency extension. Network connectivity is via Wi-Fi or Ethernet, with Bluetooth 5.3 and HDMI ARC also available as sources; note that the unit does not support AirPlay.
Specifications
| Power Output | 100W per channel @ 8Ω; 200W per channel @ 4Ω |
| Amplifier Technology | Class-D with PFFB (Post-Filter Feedback) |
| DAC Chip | ESS ES9039Q2M |
| Frequency Response | 20Hz – 20kHz ± 0.5dB |
| Signal to Noise Ratio | ≥120 dB (121 dB per WiiM official spec) |
| THD | 0.08% |
| THD+N | ≤0.005% (-106 dB) |
| Damping Factor | 94 |
| Output Impedance | 2–8 Ω |
| Analogue Inputs | 1x RCA stereo line |
| Digital Inputs | 1x Optical (TOSLINK), HDMI ARC, USB |
| Wireless Connectivity | Wi-Fi 6/6E, Bluetooth 5.3 with LE Audio |
| Wired Network | Ethernet (100Mbps, RJ45) |
| Speaker Outputs | Gold-plated binding posts x2 (banana plug or bare wire) |
| Subwoofer Output | 1x RCA, mono |
| Screen | 3.5in glass-covered capacitive touchscreen |
| Enclosure Material | Aluminium (anodised unibody) |
| Thermal Management | Copper heat pipe, aluminium heatsink, PID thermal control, passive cooling |
| Streaming Protocols | Google Cast, Spotify Connect, TIDAL Connect, Qobuz Connect, Alexa Cast, DLNA, Roon Ready |
| Dimensions (W x H x D) | 200 x 211 x 76.2mm |
| Weight | 2.45kg |
