SpeakerCraft Wireless Subwoofer Kit (Transmitter & Receiver)

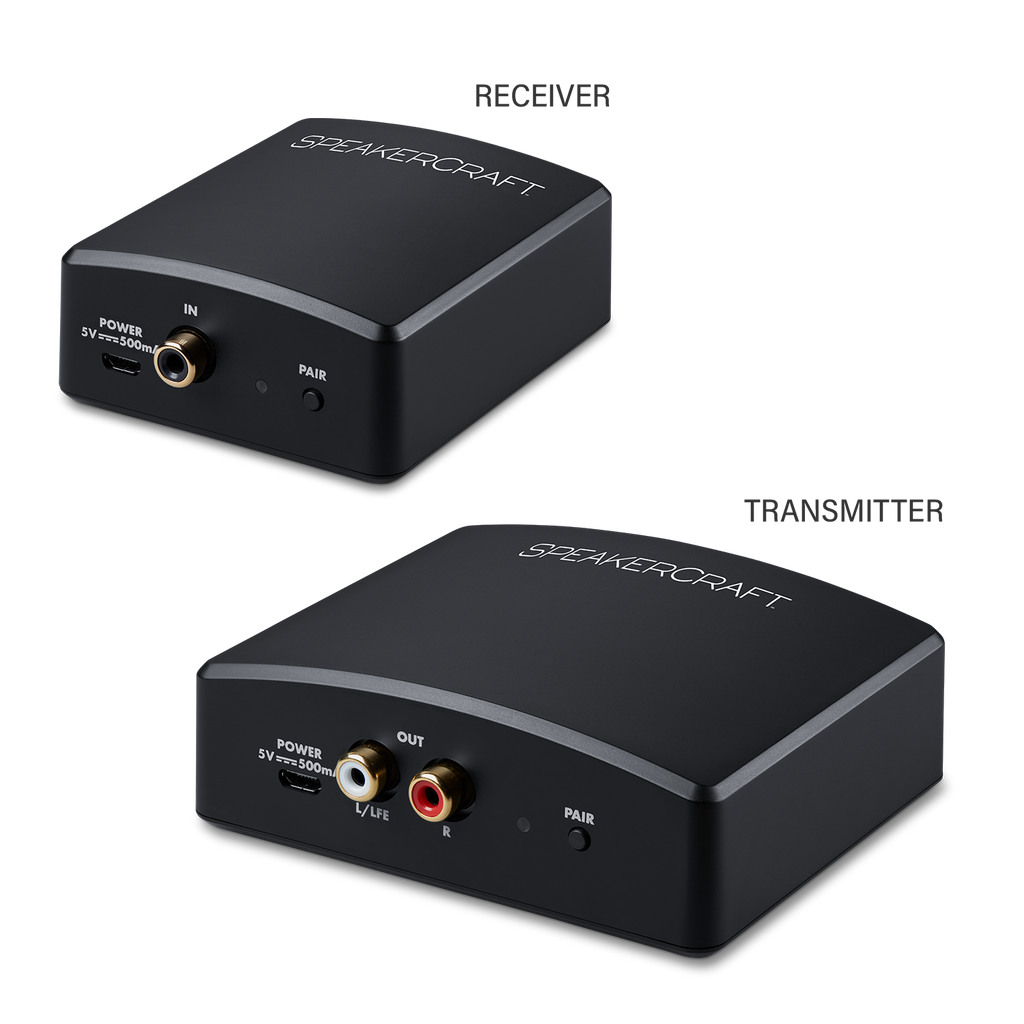

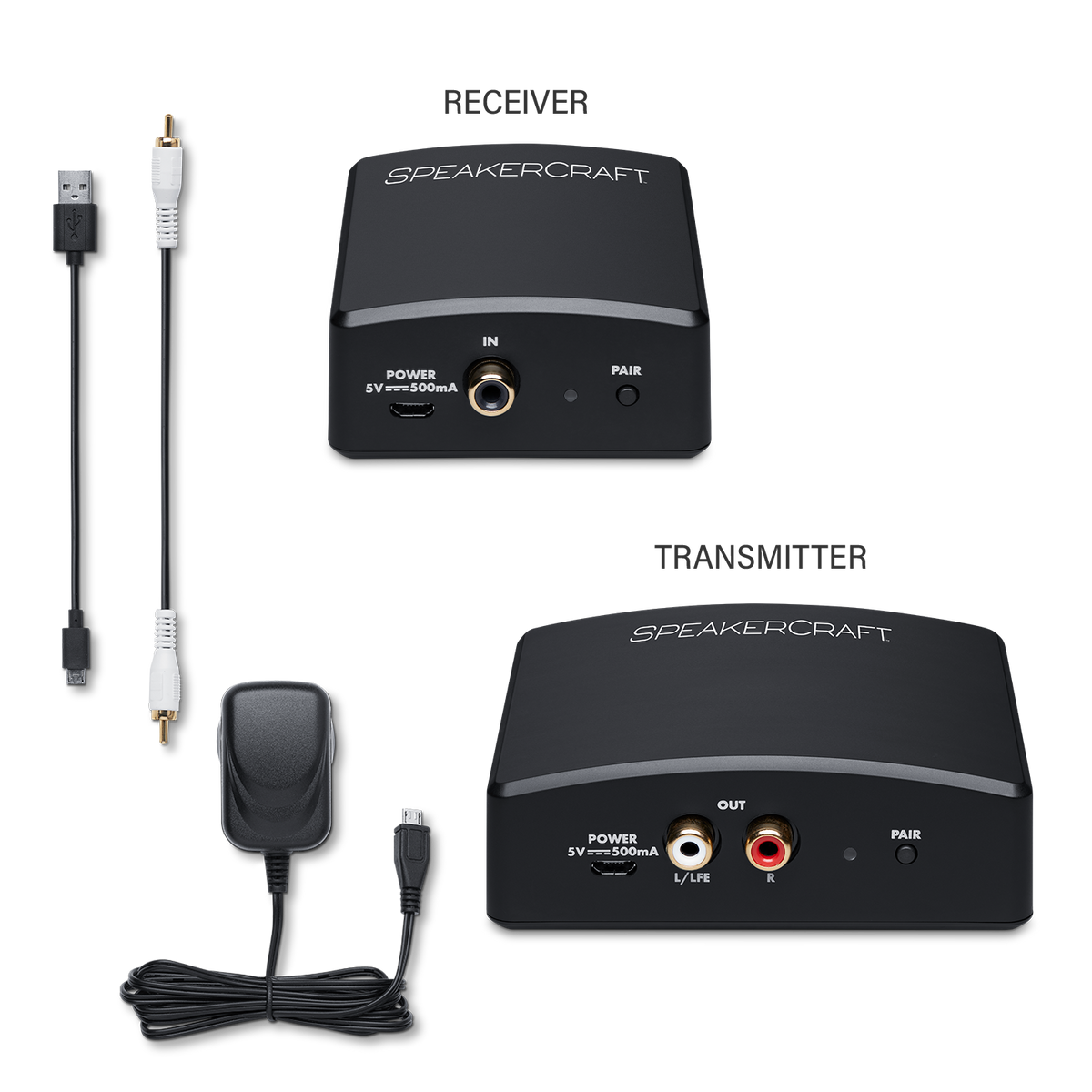

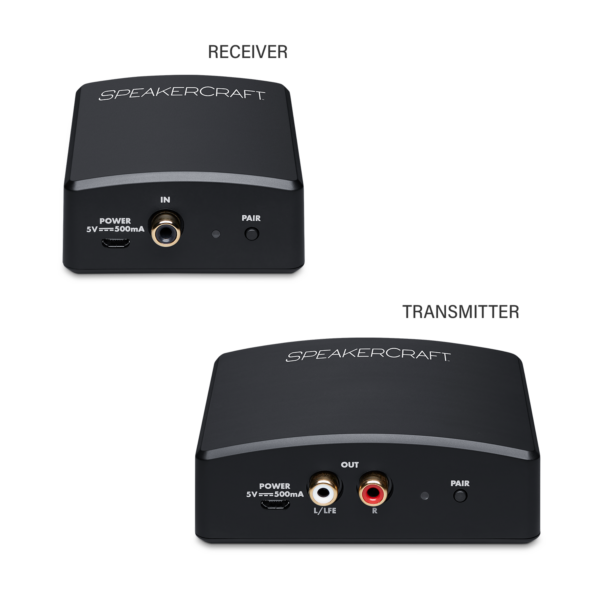

The SpeakerCraft Wireless Subwoofer Kit lets you position a subwoofer wherever it sounds best, without running a cable back to the source. The kit comprises a transmitter and a receiver that mounts directly onto the rear panel of a compatible SpeakerCraft SDSi subwoofer, making it ideal for installations where cabling to the optimal bass location simply isn't practical.
Why we like it
- 5GHz FHSS wireless technology gives a robust, interference-free connection
- Transmission range of up to 30ft (10m) for flexible subwoofer placement
- One transmitter supports up to four receivers, ideal for multi-subwoofer setups
- Receiver powers directly from the subwoofer's USB port, so no separate power supply is needed
- Designated mounting point on compatible SpeakerCraft subwoofers for a neat, secure fit
Installation notes

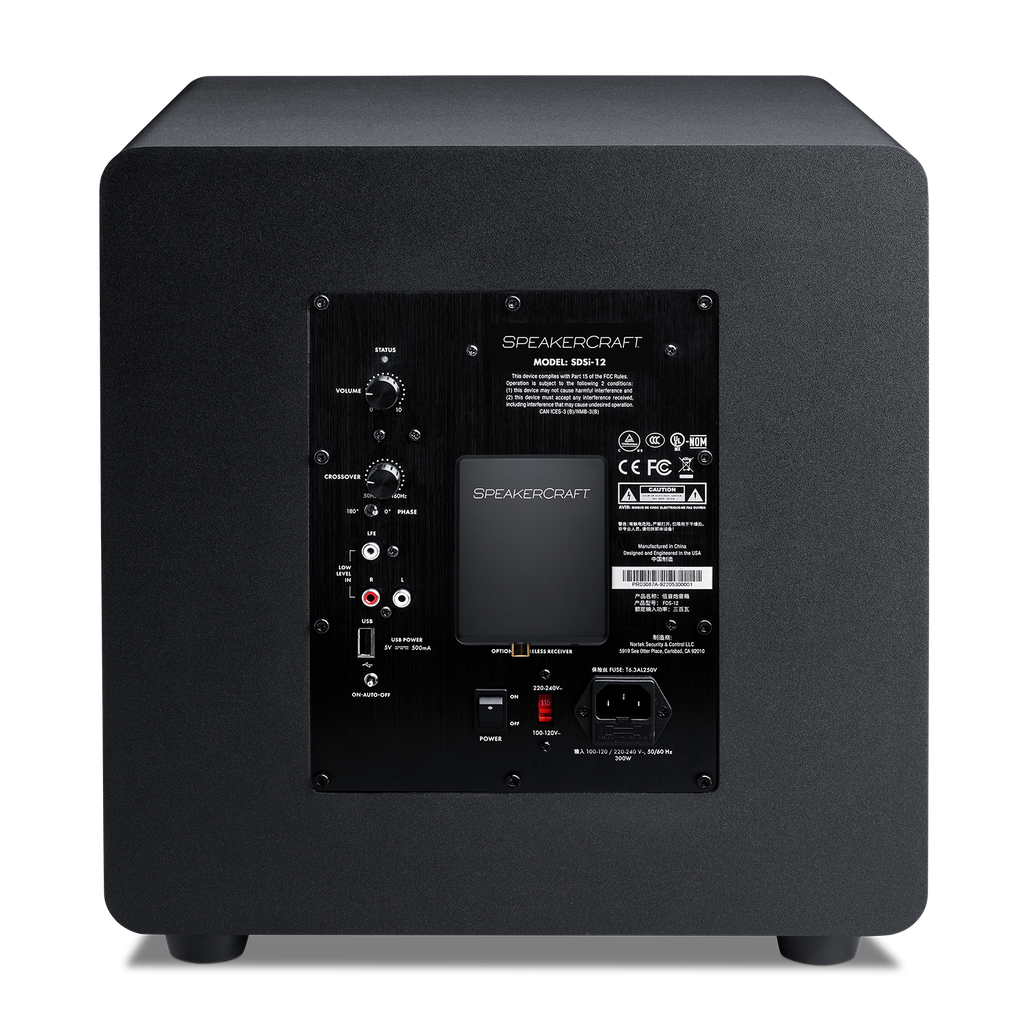

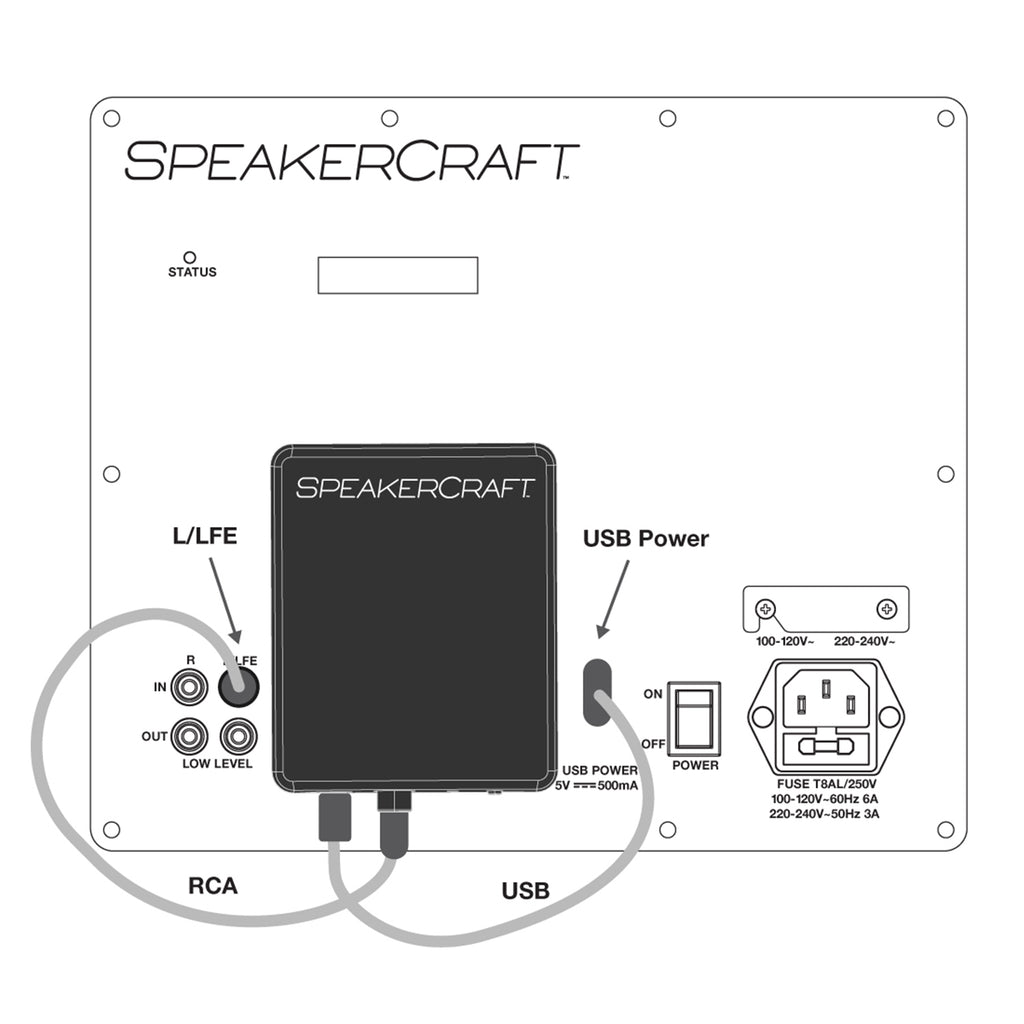

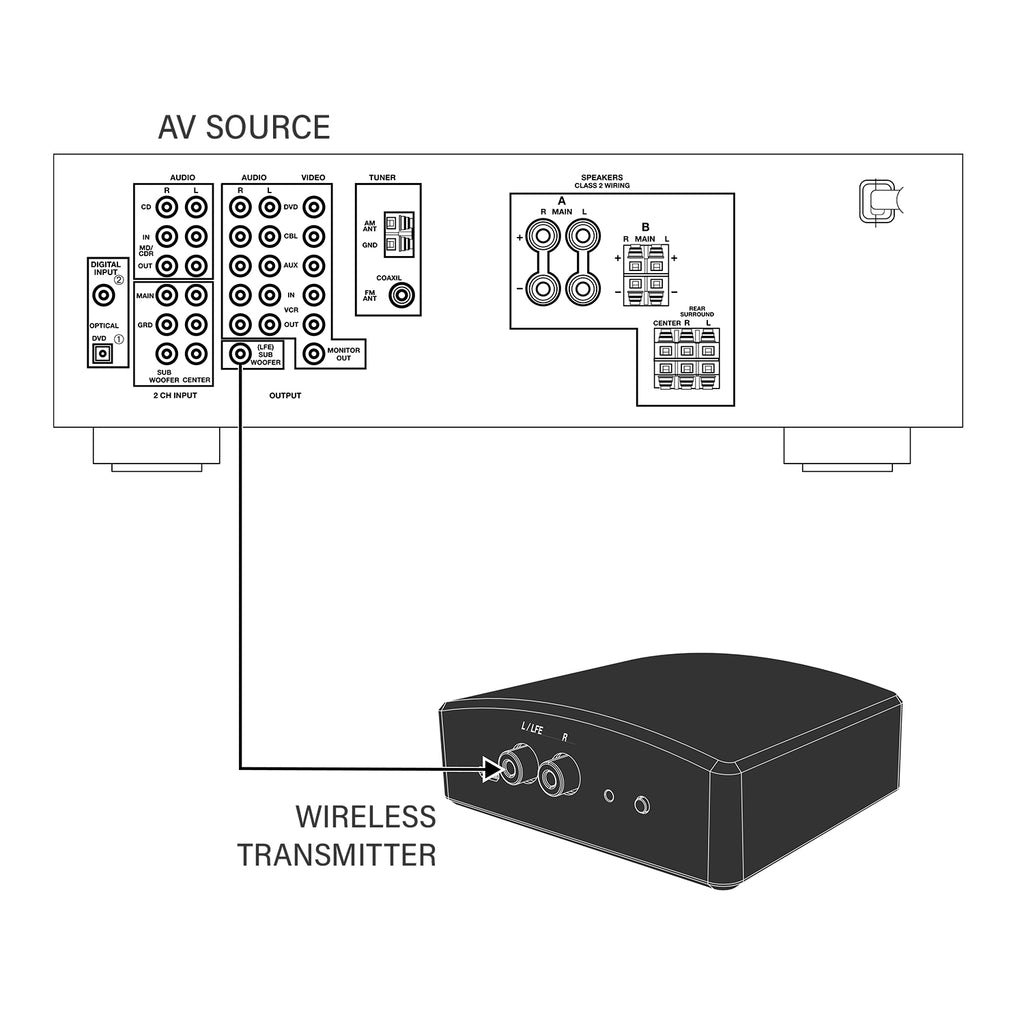

The receiver bolts onto the rear panel of a compatible SDSi subwoofer and is powered by the subwoofer's USB 5V output, so no additional mains power is required for the receiver itself. The transmitter connects at the A/V source end. Indoor use only, with a maximum range of around 30ft (10m); each transmitter can pair with up to four receivers for multi-subwoofer installations. Individual receivers are available separately for expanding beyond the supplied kit.
Specifications
| Modulation | 5 GHz Frequency Hopping; QPSK (DSSS) digital radio |
| Operating Frequency | 5.150–5.250 GHz, 5.725–5.875 GHz |
| Transmission Power | 9 dBm |
| Frequency Response | 10 Hz – 900 Hz |
| Channel Width | <22 MHz |
| Latency | <20 ms |
| Range | 30ft / 10m Max, Indoor Use Only |
| S/N Ratio | 84dB |
| Max Input Signal | 1.84V |
| Transmitter Dimensions | 36.8mm x 98.6mm x 88mm |
| Receiver Dimensions | 34.3mm x 68.4mm x 88mm |
| Max Receivers per Transmitter | Up to 4 |
| Power | USB Powered (via subwoofer's USB port) |
